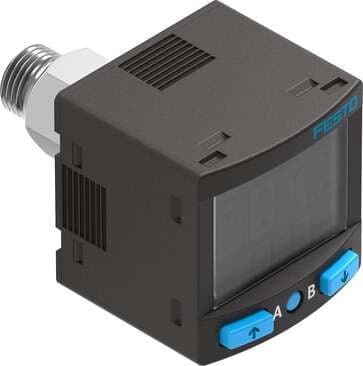

8035545 Festo Pressure Sensors

8035545 on Powermatic Associates
Festo

Part#:8035545

Alt. Part#:SPAN-B2R-G18M-PN-PN-L1

Manufacturer:Festo

Category:Pressure Sensors

Product Lifecycle:Active

Product description

pressure sensor SPAN-B2R-G18M-PN-PN-L1 Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Certificate issuing department: UL

Product Details

  • KC characters
    KC EMC
  • Type code
    SPAN
  • Pressure measuring range end value
    1 bar
  • Note on materials
    RoHS-compliant
  • Accuracy in ± % FS
    1.5 %FS
  • Short-circuit protection
    yes
  • Product weight
    46 g
  • Pressure measuring range initial value
    -1 bar
  • Certificate issuing authority
    UL E322346
  • Method of measurement
    Piezoresistive pressure sensor
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Temperature co-efficient in ± %FS/K
    0.05 %FS/K
  • Max. output current
    100 mA
  • Reverse polarity protection
    for all electrical connections
  • Display type
    Illuminated LCD
  • Electrical connection for input 1, connection pattern
    00995428
  • Electrical connection 1, connection type
    Plug
  • Symbol
    00995686
  • Measured variable
    Relative pressure
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Repetition accuracy in ± %FS
    0.3 %FS
  • Switching element function
    N/C contact/N/O contact switchable
  • DC operating voltage range
    15 V ... 30 V
  • Pneumatic connection
    External thread G1/8 Internal thread M5
  • Materials in contact with the media
    FPM PA-reinforced
  • Setting options
    Teach-in Via display and pushbuttons
  • Degree of protection
    IP40
  • Electrical connection 1, connection technology
    Connection diagram L1J
  • Electrical connection 1, number of pins/wires
    4
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Max. overload pressure
    5 bar
  • Temperature of medium
    0 °C ... 50 °C
  • Switching output
    2 x PNP or 2 x NPN switchable
  • Type of mounting
    Front panel mounting With wall/surface bracket
  • Housing material
    PA-reinforced
  • Protection against tampering
    PIN code
  • Displayable unit(s)
    MPa psi
  • Overload pressure
    72.5 psi
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Ambient temperature
    0 °C ... 50 °C
  • Switching function
    Window comparator Auto difference monitoring
  • Mounting position
    Any
  • Setting range threshold value
    0 % ... 100 %
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Setting range hysteresis
    0 % ... 90 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
