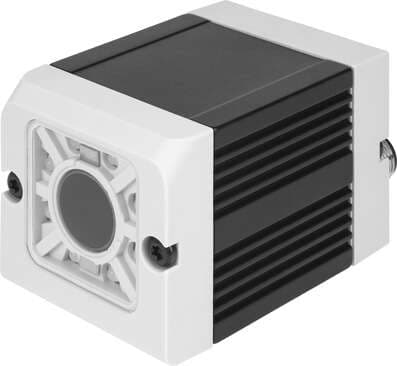

8058715 Festo Electronic Components

Product Details

• Lens attachment
  Integrated optics
• Sensor type
  Monochrome
• Information on Ethernet, connection technology
  Socket 4-pin
• Ethernet, supported protocols
  Ethernet/IP TCP/IP
• Type code
  SBSI
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Lighting type
  Integrated
• Frame rate (full image)
  50 fps
• Ethernet, data transmission speed
  100 Mbit/s
• Number of selectable digital inputs/outputs
  4
• Nominal operating voltage DC
  24 V
• Ambient temperature
  0 °C ... 50 °C
• Housing material
  Wrought aluminum alloy, anodized
• Cover material
  ABS-reinforced
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Focus setting
  With adjusting screw
• Max. number of test criteria/detectors
  255
• Typical cycle time
  1D bar code: 30 ms 2D code: 40 ms
• Electrical connection
  12-pin Plug
• Switching input
  PNP/NPN switchable
Switching output
PNP/NPN switchable
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Storage temperature
-20 °C ... 60 °C
KC characters
KC EMC
Working distance
6 mm - infinite
Field of view
min. 5 x 4 mm
Sensor resolution
736 x 480 pixels (WideVGA)
Function of detectors/characteristics
EAN PDF 417
Serial interface, type
RS 232 / RS 422
Number of digital outputs
2
Short-circuit protection
For all electrical connections
Current consumption with load-free outputs
200 mA
Vision sensor version
Code reader
Focal length
6 mm
Type of light
White LED
Max. no. of inspection programs/jobs
255
Serial interface, connection technology
Plug 5-pin
Number of digital inputs
2
Max. output current
50 mA
Max. current consumption
550 mA
Degree of protection
IP67
Note on materials
RoHS-compliant
Switching level
Signal 0: <= 3 V Signal 1: >= UB - 1 V
Permissible voltage fluctuations
-25 %/+10 %
Product weight
160 g
Vibration resistance
as per EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
