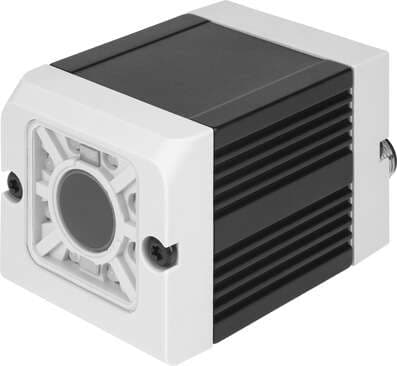

8058718 Festo Electronic Components

Product Details

• CE marking (see declaration of conformity)
  As per EU EMC directive
• Working distance
  30 mm - infinite
• Lighting type
  Integrated
• Function of detectors/characteristics
  EAN PDF 417
• Frame rate (full image)
  50 fps
• KC characters
  KC EMC
• Field of view
  min. 8 x 6 mm
• Max. no. of inspection programs/jobs
  255
• Serial interface, connection technology
  Plug 5-pin
• Type code
  SBSI
• Vision sensor version
  Code reader
• Focal length
  12 mm
• Sensor resolution
  736 x 480 pixels (WideVGA)
• Max. number of test criteria/detectors
  255
• Ethernet, data transmission speed
  100 Mbit/s
• Number of digital outputs
  2
• Current consumption with load-free outputs
  200 mA
• Degree of protection
  IP67
• Note on materials
  RoHS-compliant
• Wavelength
  640 nm
Certification
RCM compliance mark c UL us - Listed (OL)
Lens attachment
Integrated optics
Sensor type
Monochrome
Information on Ethernet, connection technology
Socket 4-pin
Electrical connection
12-pin Plug
Switching output
PNP/NPN switchable
Switching level
Signal 0: <= 3 V Signal 1: >= UB - 1 V
Permissible voltage fluctuations
-25 %/+10 %
Cover material
ABS-reinforced
Focus setting
With adjusting screw
Type of light
Infrared LED
Typical cycle time
1D bar code: 30 ms 2D code: 40 ms
Serial interface, type
RS 232 / RS 422
Number of selectable digital inputs/outputs
4
Max. output current
50 mA
Max. current consumption
550 mA
Storage temperature
-20 °C ... 60 °C
Product weight
160 g
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ethernet, supported protocols
Ethernet/IP TCP/IP
Number of digital inputs
2
Short-circuit protection
For all electrical connections
Ambient temperature
0 °C ... 50 °C
Housing material
Wrought aluminum alloy, anodized
Switching input
PNP/NPN switchable
Nominal operating voltage DC
24 V
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Vibration resistance
as per EN 60068-2-6
