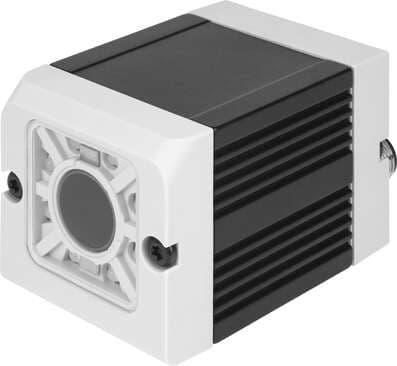

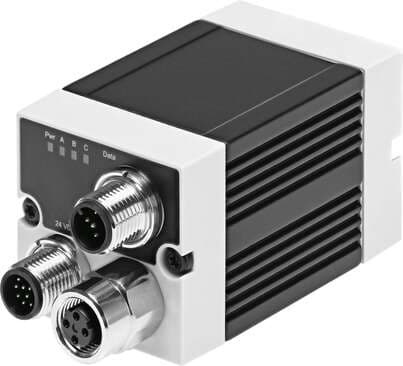

8058734 Festo Electronic Components

Product Details

• Focus setting
  With adjusting screw
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Lighting type
  Integrated
• Function of detectors/characteristics
  Position tracking via contour Color list
• Number of selectable digital inputs/outputs
  4
• KC characters
  KC EMC
• Working distance
  30 mm - infinite
• Lens attachment
  Integrated optics
• Sensor resolution
  736 x 480 pixels (WideVGA)
• Max. number of test criteria/detectors
  255
• Ethernet, data transmission speed
  100 Mbit/s
• Vision sensor version
  Color sensor
• Focal length
  12 mm
• Type of light
  White LED
• Max. no. of inspection programs/jobs
  255
• Serial interface, connection technology
  Plug 5-pin
• Electrical connection
  12-pin Plug
• Type code
  SBSI
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Field of view
  min. 8 x 6 mm
Frame rate (full image)
40 fps
Typical cycle time
Position tracking: 30 ms Color list: 2 ms
Number of digital outputs
2
Switching level
Signal 0: <= 3 V Signal 1: >= UB - 1 V
Short-circuit protection
For all electrical connections
Ambient temperature
0 °C ... 50 °C
Product weight
160 g
Sensor type
Color
Ethernet, supported protocols
Ethernet/IP TCP/IP
Information on Ethernet, connection technology
Socket 4-pin
Switching output
PNP/NPN switchable
Current consumption with load-free outputs
200 mA
Vibration resistance
as per EN 60068-2-6
Serial interface, type
RS 232 / RS 422
Number of digital inputs
2
Max. current consumption
550 mA
Degree of protection
IP67
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Max. output current
50 mA
Permissible voltage fluctuations
-25 %/+10 %
Storage temperature
-20 °C ... 60 °C
Cover material
ABS-reinforced
Switching input
PNP/NPN switchable
Nominal operating voltage DC
24 V
Housing material
Wrought aluminum alloy, anodized
Note on materials
RoHS-compliant
