8127664 Festo Actuator Accessories

Name: 8127664
Brand: Festo

Part#:8127664

Alt. Part#:DASP-F10-125-A

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

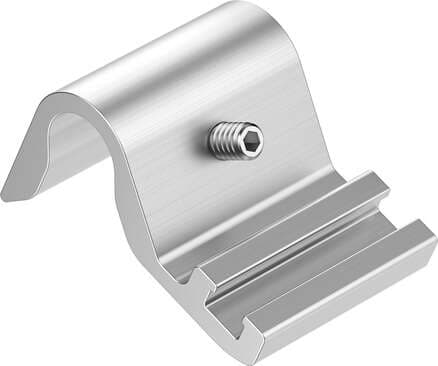

sensor bracket DASP-F10-125-A Size: 125, Design: For tie rod, Assembly position: Any, Corrosion resistance classification CRC: 3 - High corrosion stress, Tightening torque: 0,6 - 1 Nm

Product Details

Design
for tie rods
Product weight
26.5 g
Type code
DASP
Corrosion resistance class (CRC)
3 - High corrosion stress
Tightening torque
0.6 Nm ... 1 Nm
Mounting position
Any
Material of screws
High-alloy stainless steel
Size
125
for piston Ø
Ø125
Note on materials
RoHS-compliant
Housing material
Wrought aluminum alloy, anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
