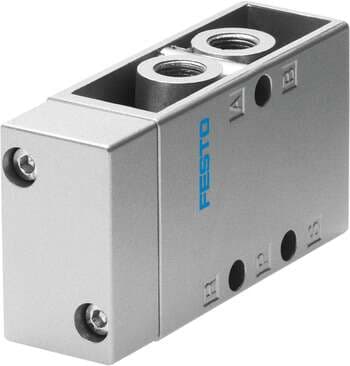

9199 Festo Directional Control Valves
Part#:9199
Alt. Part#:VL-5-1/4
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VL-5-1/4 5/2-way function, pneumatically actuated, with spring return Valve function: 5/2 monostable, Type of actuation: pneumatic, Width: 30,5 mm, Standard nominal flow rate: 800 l/min, Operating pressure: 0 - 8 bar
Product Details
- Valve function 5/2, monostable
- Lap Underlap
- Pneumatic working port G1/4
- Design Plate seat
- Nominal width 7 mm
- Exhaust air function With flow control option
- Flow direction Non-reversible
- Switching time off 11 ms
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 220 g
- Pneumatic connection 1 G1/4
- Seals material NBR TPE-U(PU)
- Symbol 00991001
- On switching time 7 ms
- Type of mounting Optionally: With through-hole
- Pneumatic connection 3 G1/4
- Housing material Die-cast aluminum
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 5 G1/4
- Width 30.5 mm
- Operating pressure 0 bar ... 8 bar
- Reset method Mechanical spring
- Type code VL
- Mounting position Any
- Pilot air supply port External
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot air port 14 G1/8
- Note on materials RoHS-compliant
- Actuation type Pneumatic
- Standard nominal flow rate 800 l/min
- Degree of protection IP65
- Width dimension 32 mm
- Sealing principle Soft
- Type of control Direct
- Pilot pressure 1.2 bar ... 10 bar
- Storage temperature -20 °C ... 60 °C
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G¼
- Pneumatic connection 4 G1/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
