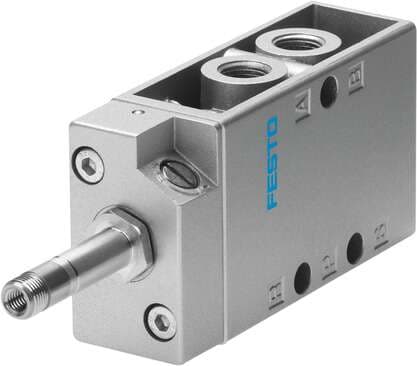

9765 Festo Directional Control Valves

Product Details

• Lap
  Underlap
• Standard nominal flow rate
  500 l/min
• Reset method
  Mechanical spring
• Type code
  MFH
• Flow direction
  Non-reversible
• Max. positive test pulse with 0 signal
  2200 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pilot exhaust air port 84
  M5
• Seals material
  NBR
• Width
  26 mm
• Pneumatic working port
  1/8 NPT
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• On switching time
  8 ms
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Product weight
  270 g
• Pneumatic connection 1
  1/8 NPT
• Pneumatic connection 4
  1/8 NPT
• Operating pressure
  1.8 bar ... 8 bar
• Nominal width
  5 mm
Manual override
Detenting
Coil characteristics
See solenoid coil, to be ordered separately
Type of mounting
Optionally: With through-hole
Pneumatic connection 2
1/8 NPT
Pneumatic connection 5
1/8 NPT
Actuation type
Electrical
Operating voltage
Via solenoid coil, to be ordered separately
Width dimension
27 mm
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Switching time off
36 ms
Max. negative test pulse on 1 signal
3700 µs
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-5 °C ... 40 °C
Pilot air port 12
1/8 NPT
Valve function
5/2, monostable
Design
Plate seat
Degree of protection
IP65
Mounting position
Any
Symbol
00991035
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Storage temperature
-20 °C ... 60 °C
Electrical connection
Via F coil, to be ordered separately
Pneumatic connection 3
1/8 NPT
Housing material
Die-cast aluminum
