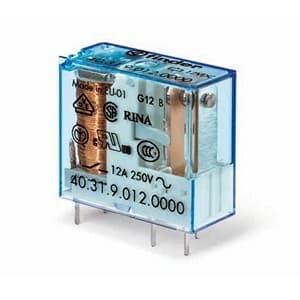

40.51.9.024.0000 Finder Control Relays

40.51.9.024.0000 on Powermatic Associates
Finder

Part#:40.51.9.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 40.51.9.024.0000 is a relay with a solder pin connection type, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.3A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 24Vdc and is capable of handling 1000VA at 230Vac and 3000VA at 250Vac for ambient air temperatures during operation, with an ambient air temperature range for storage of -40 to +85 degrees Celsius. The relay features a Single Pole Double Throw (SPDT) design, a rated voltage of 250Vac, and a control voltage of 6 kV. It is designed for PCB plug-in mounting, with dimensions including a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.65 W. The relay has a visual position indicator with 5.3mm pins pitch, is rated for 200,000 operations for Normally Closed (NC) circuits, and has a durability of 10,000,000 operations. The relay's contacts are made of AgNi (Silver Nickel).

Product Details

  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    10 000 000 operations
  • Rated impulse voltage (Uimp)
    6 kV
  • Poles
    1 Pole(s)
  • Degree of protection
    RT II
  • Net Height (mm)
    25 mm
  • Connection type
    Solder pin
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Net Depth (mm)
    12.4 mm
  • Control Voltage (DC)
    24Vdc
  • Power consumption
    0.65 W
  • Net Width (mm)
    29 mm
  • Mounting mode
    PCB Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    40 series
  • Rated power
    1000VA (230Vac; AC-15) 3000VA (250Vac; AC-1) 0.65W
  • Distance
    5.3mm pins pitch
  • Main function
    Relay
  • Primary brand
    Finder
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.3A (220Vdc; DC-1)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.51.9.024.0000 Related Documents

Finder - 40 Series - Catalogue.pdf
