40.52.8.024.5000 Finder Control Relays

40.52.8.024.5000 on Powermatic Associates
Finder

Part#:40.52.8.024.5000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

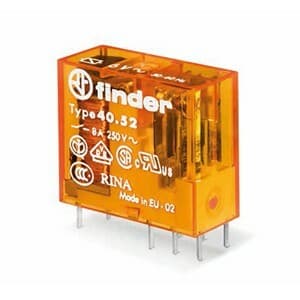

Finder 40.52.8.024.5000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage of 6 kV and a rated active power of 2 poles. It features a net width of 25 mm, a mounting mode width of 29 mm, and a power consumption width of 12.4 mm. The color is specified for a 24Vac (50Hz/60Hz) supply, with a residual current sensitivity suitable for PCB and plug-in applications. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 100,000 operations for Normally Closed (NC) circuits, with a contact material of AgNi+Au (Gold plated silver-nickel), and a durability of 10,000,000 operations.

Product Details

  • Primary brand
    Finder
  • Distance
    5.3mm pins pitch
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    10 000 000 operations
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Main function
    Relay
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    29 mm
  • Product series / family name
    40 series
  • Connection type
    Solder pin
  • Mounting mode
    PCB Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    25 mm
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Depth (mm)
    12.4 mm
  • Poles
    2 Pole(s)
  • Degree of protection
    RT II
  • Electrical durability (with load)
    100 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.52.8.024.5000 Related Documents

Finder - 40 Series - Catalogue.pdf
