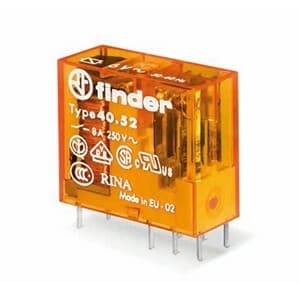

40.52.8.230.0000 Finder Control Relays

40.52.8.230.0000 on Powermatic Associates
Finder

Part#:40.52.8.230.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 40.52.8.230.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower currents of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and can handle ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay is rated for 400VA at 230Vac (AC-15) and 2000VA at 250Vac (AC-1), with a rated voltage of 250Vac. It features a control voltage of 6 kV, a mounting mode of 29 mm, and a rated active power of 2 poles. The power consumption is specified for 230Vac (50Hz/60Hz), with a net width of 25 mm and a net depth of 12.4 mm. The relay is designed for PCB or plug-in mounting, has a visual position indicator with 5.3mm pins pitch, and supports up to 100 000 operations for Normally Closed (NC) circuits and 10 000 000 operations overall. The contact material is AgNi (Silver Nickel), indicating its composition.

Product Details

  • Distance
    5.3mm pins pitch
  • Poles
    2 Pole(s)
  • Degree of protection
    RT II
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Depth (mm)
    12.4 mm
  • Primary brand
    Finder
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Control Voltage (AC)
    230Vac (50Hz/60Hz)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    29 mm
  • Product series / family name
    40 series
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Mounting mode
    PCB Plug-in
  • Rated impulse voltage (Uimp)
    6 kV
  • Contacts coating
    AgNi (Silver Nickel)
  • Connection type
    Solder pin
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    100 000 operations
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
