40.52.8.240.0001 Finder Control Relays

40.52.8.240.0001 on Powermatic Associates
Finder

Part#:40.52.8.240.0001

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

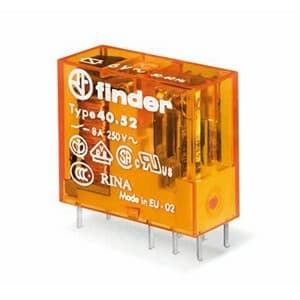

Miniature electromechanical PCB power relay - Wash-tight (RTIII) - Finder (40 series) - Control coil voltage 240Vac (50Hz/60Hz) - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 8A (250Vac; AC-1) / 8A (30Vdc; DC-1) - Rated sw

Product Details

  • Product series / family name
    40 series
  • Poles
    2 Pole(s)
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Mounting mode
    PCB Plug-in
  • Net Width (mm)
    29 mm
  • Primary brand
    Finder
  • Control Voltage (AC)
    240Vac (50Hz/60Hz)
  • Mechanical durability (at no load)
    10 000 000 operations
  • Main function
    Relay
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Connection type
    Solder pin
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Height (mm)
    25 mm
  • Rated power
    400VA (230Vac; AC-15) 2000VA (250Vac; AC-1)
  • Degree of protection
    RT III
  • Electrical durability (with load)
    100 000 operations
  • Distance
    5.3mm pins pitch
  • Rated voltage (AC)
    250Vac
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Depth (mm)
    12.4 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
