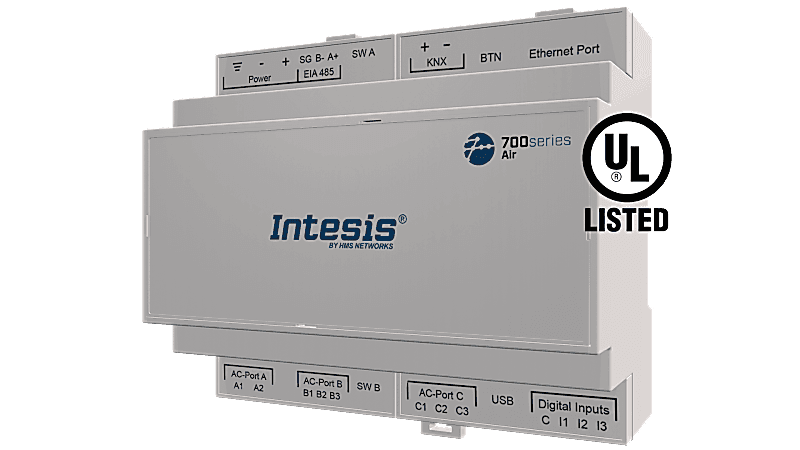

IN776MHI00LO000 HMS Networks Industrial Automation Components

Product Details

• Not Included (in delivery)
  Power supply not included.
• BTL
  Yes
• Mounting
  DIN rail mount (bracket included), Wall mount
• Packaging Material
  Cardboard
• Dual Usage (ERP)
  No
• Net Height (ERP) (mm)
  58 mm
• CB
  Yes
• WEEE Category
  IT and telecommunications equipment
• Net Width (ERP) (mm)
  106 mm
• Capacity
  This gateway can support up to 128 indoor units when signals from the outdoor units are disabled. It can also support up to 80 indoor and 12 outdoor units.
• UL
  Yes
• LED Indicators
  Gateway and communication status.
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• Power Connector
  3-pole
• Operating Temperature °C Min
  0 °C
• UKCA
  Yes
• Installation Conditions
  This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
• Country of Origin
  Spain
• Housing Materials
  Plastic
Warranty (years)
3 years
Operating Temperature °C Max
60 °C
ETIM Classification
EC001604
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
Input Voltage (V)
For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
DIP & Rotary Switches
EIA-485 serial port configuration.
Net Depth (ERP) (mm)
90 mm
CE
Yes
HS Code
8517620000
Net Weight (ERP) (g)
240 g
UKPSTI
Yes
Contains Battery
No
Connectors / Input / Output
Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
