0030915 Lapp Electronic Components

Name: 0030915
Brand: Lapp

Part#:0030915

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

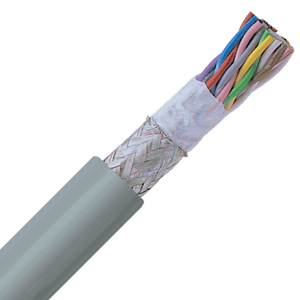

0030915 - LAPP UNITRONIC® FD CP (TP) Plus Data, Signal & Control Cable - 26 AWG/8 Pair - Gray

Product Details

SHIELDING
Braid
MANUFACTURER PART NUMBER
0030915
NOMINAL OD (IN)
0.358
VOLTAGE
250V
TYPE
Data Signal & Control
NOMINAL OD (MM)
9.1
CONDUCTOR STRANDING
Stranded
TEMPERATURE
-40°F to +176°F-40°C to +80°C
CONDUCTOR MATERIAL
Bare copper
STANDARDS/APPROVALS
UL Approved CE Approved
NUMBER OF CONDUCTORS
8 pair
FLEXIBILITY
Continuous flex
AWG/GAUGE
26
JACKET MATERIAL
Polyurethane (PUR)
JACKET COLOR
Gray
SERIES
UNITRONIC® FD P Plus / CP Plus / CP (TP) Plus

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
