CPN001F02 Lapp Electronic Components

Name: CPN001F02
Brand: Lapp

Part#:CPN001F02

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

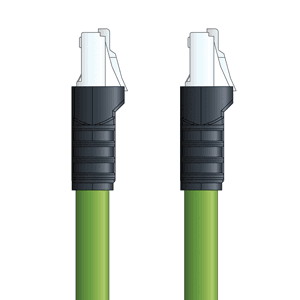

CPN001F02 - LAPP ETHERLINE® PROFINET Cordsets 22 AWG / 2 pair CAT5 - Green Polyurethane (PUR) - RJ45 / RJ45 connectors - 2m

Product Details

NUMBER OF PAIRS
2 pair
VOLTAGE
42V
LENGTH
2m (6.56ft)
ENVIRONMENTAL
Oil-resistant
TYPE
CAT5
IP RATING
IP20
SERIES
ETHERLINE® PROFINET Cordsets
CONTACT CARRIER MATERIAL
PBT
JACKET COLOR
Green
JACKET MATERIAL
Polyurethane (PUR)
CONNECTORS
RJ45 / RJ45
SHIELDING
Copper Braid
TEMPERATURE
-4°F to +140°F -20°C to +60°C
INSULATION MATERIAL
Polyethylene
NUMBER OF POSITIONS
4
MANUFACTURER PART NUMBER
CPN001F02
AWG/GAUGE
22
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
