PB4110107F10 Lapp Electronic Components

Name: PB4110107F10
Brand: Lapp

Part#:PB4110107F10

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

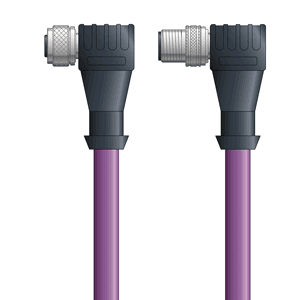

PB4110107F10 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - M12 Male 90 deg / M12 Female 90 deg connectors - 10m

Product Details

SERIES
UNITRONIC® PROFIBUS Cordsets
AWG/GAUGE
24
TYPE
Bus
IP RATING
IP67
CONTACT CARRIER MATERIAL
PBT
JACKET COLOR
Violet
VOLTAGE
250V
JACKET MATERIAL
Polyurethane (PUR)
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
NUMBER OF POSITIONS
5
INSULATION MATERIAL
Polyethylene
SHIELDING
Foil Braid
NUMBER OF PAIRS
1 pair
TEMPERATURE
-40°F to +176°F -40°C to +80°C
ENVIRONMENTAL
Oil-resistant
LENGTH
10m (32.8ft)
MANUFACTURER PART NUMBER
PB4110107F10
CONNECTORS
M12 Male 90 deg / M12 Female 90 deg

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
