PB4110118F02 Lapp Electronic Components

Name: PB4110118F02
Brand: Lapp

Part#:PB4110118F02

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

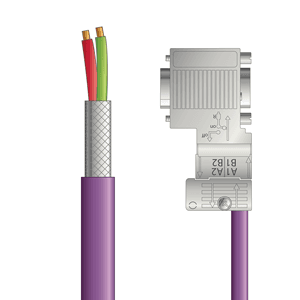

PB4110118F02 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - Wire Leads / D-sub Master connectors - 2m

Product Details

LENGTH
2m (6.56ft)
TEMPERATURE
-40°F to +176°F -40°C to +80°C
NUMBER OF PAIRS
1 pair
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
TYPE
Bus
CONNECTORS
Wire Leads / D-sub Master
JACKET MATERIAL
Polyurethane (PUR)
IP RATING
IP67
AWG/GAUGE
24
VOLTAGE
250V
CONTACT CARRIER MATERIAL
PBT
NUMBER OF POSITIONS
5
ENVIRONMENTAL
Oil-resistant
SERIES
UNITRONIC® PROFIBUS Cordsets
JACKET COLOR
Violet
MANUFACTURER PART NUMBER
PB4110118F02
SHIELDING
Foil Braid
INSULATION MATERIAL
Polyethylene

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
