PB4110147S05 Lapp Electronic Components

Name: PB4110147S05
Brand: Lapp

Part#:PB4110147S05

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

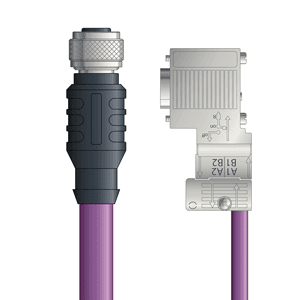

PB4110147S05 - LAPP UNITRONIC® PROFIBUS Cordsets 22 AWG / 1 pair Bus - Violet PVC - M12 Female / D-sub Node connectors - 5m

Product Details

SERIES
UNITRONIC® PROFIBUS Cordsets
TYPE
Bus
MANUFACTURER PART NUMBER
PB4110147S05
NUMBER OF POSITIONS
5
TEMPERATURE
-40°F to +176°F -40°C to +80°C
IP RATING
IP67
JACKET COLOR
Violet
CONTACT CARRIER MATERIAL
PBT
CONNECTORS
M12 Female / D-sub Node
NUMBER OF PAIRS
1 pair
LENGTH
5m (16.4ft)
VOLTAGE
250V
JACKET MATERIAL
PVC
AWG/GAUGE
22
SHIELDING
Foil Braid
ENVIRONMENTAL
Oil-resistant
INSULATION MATERIAL
Polyethylene
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
