PB4110160F02 Lapp Electronic Components

Name: PB4110160F02
Brand: Lapp

Part#:PB4110160F02

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

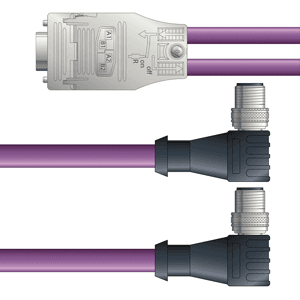

PB4110160F02 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - M12 Male 90 deg (2) / D-sub Straight connectors - 2m

Product Details

AWG/GAUGE
24
IP RATING
IP20
NUMBER OF PAIRS
1 pair
VOLTAGE
250V
CONTACT CARRIER MATERIAL
PBT
JACKET MATERIAL
Polyurethane (PUR)
TYPE
Bus
JACKET COLOR
Violet
LENGTH
2m (6.56ft)
TEMPERATURE
-40°F to +176°F -40°C to +80°C
MANUFACTURER PART NUMBER
PB4110160F02
SHIELDING
Foil Braid
SERIES
UNITRONIC® PROFIBUS Cordsets
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
CONNECTORS
M12 Male 90 deg (2) / D-sub Straight
NUMBER OF POSITIONS
5
INSULATION MATERIAL
Polyethylene
ENVIRONMENTAL
Oil-resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
