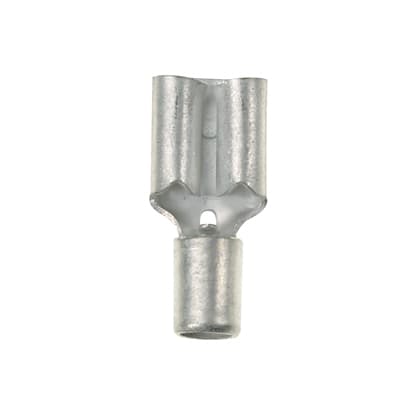

D18-187-M Panduit Electronic Components

Product Details

• Maximum Wire Size (AWG)
  #18
• Wire Strip Length (In.)
  0.28
• Flammability Rating
  NA
• Minimum Copper Conductor Size (AWG)
  #22
• Finish/Coating
  Tinned
• Maximum Copper Conductor Size (AWG)
  #18
• Minimum Wire Size (AWG)
  #22
• Maximum Voltage (V)
  2000
• Disconnect Type
  Female Disconnect
• Overall Thickness (In.)
  0.16
• Insulation Material
  Non-Insulated
• Tab Size (In.)
  0.19
• Color Code
  Metallic
• Overall Width (In.)
  0.23
• Wire Strip Length (mm)
  7.1
• Base Material
  Brass
• Overall Width (mm)
  5.8
• Overall Thickness (mm)
  0.4
• Maximum Operating Temperature (°F)
  302
• Overall Height (In.)
  0.1
Maximum Voltage (kV)
2
For Use With
CT-100, CT-100A, CT-200, CT-570, CT-600,-A(D10-250 ONLY), CT-1570, CT-2457CH, CT-2500, CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2457CH, CT-2500, CT-160, Ct-260
Sub Brand
Pan-Term
Standards Met
UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153
Barrel Type
Sleeved Barrel
Overall Length (In.)
0.58
Product Type
Loose Piece Disconnect
Overall Height (mm)
2.5
Part Features
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping • Barrel of terminal internally beveled to provid
Overall Length (mm)
14.7
Packaging Type
Box
Tab Size (mm)
4.8
Maximum Operating Temperature (°C)
150
