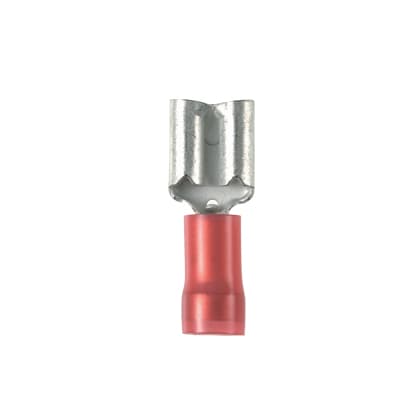

DNF18-187-M Panduit Electronic Components

Product Details

• Finish/Coating
  Tinned
• Wire Strip Length (mm)
  7.1
• Maximum Wire Insulation Diameter (In.)
  0.14
• Insulation Diameter (In.)
  0.14
• Disconnect Type
  Female Disconnect
• Color Code
  Red
• Overall Height (In.)
  0.1
• Overall Width (In.)
  0.23
• Overall Length (In.)
  0.76
• Maximum Voltage (kV)
  0.3
• Minimum Wire Size (AWG)
  #18
• Maximum Operating Temperature (°F)
  194
• Overall Thickness (mm)
  0.4
• Minimum Copper Conductor Size (AWG)
  #18
• Maximum Copper Conductor Size (AWG)
  #22
• Overall Thickness (In.)
  0.16
• Wire Strip Length (In.)
  0.28
• Barrel Type
  Grip Sleeve
• Maximum Wire Insulation Diameter (mm)
  3.5
• Overall Width (mm)
  5.8
Overall Length (mm)
19.3
Base Material
Brass
Insulation Diameter (mm)
3.5
Packaging Type
Box
Overall Height (mm)
2.5
Sub Brand
Pan-Term
Product Type
Loose Piece Disconnect
Part Features
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal
Maximum Voltage (V)
300
Flammability Rating
HB
Maximum Wire Size (AWG)
#22
Insulation Material
Nylon - Barrel Insulated
Tab Size (In.)
0.19
For Use With
CT-500, CT-160, CT-260, CT-400, CT-460, CT-1550, CT-1551
Standards Met
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Operating Temperature (°C)
90
Tab Size (mm)
4.8
