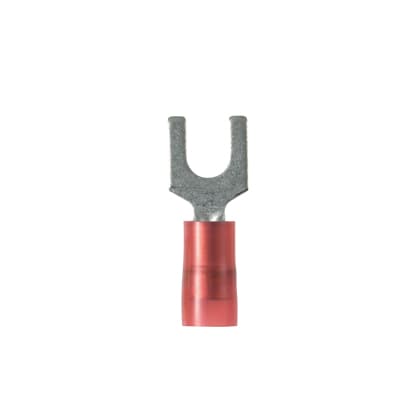

PN18-6FN-M Panduit Electronic Components

Product Details

• Minimum Copper Conductor Size (AWG SOL)
  #22
• Maximum Voltage (kV)
  0.6
• Flammability Rating
  UL 587-H
• Maximum Voltage (V)
  600
• Maximum Operating Temperature (°F)
  221
• Overall Width (In.)
  0.24
• Insulation Type
  Nylon
• Stud Size
  #6
• Base Material
  Copper
• Maximum Copper Conductor Size (AWG STR)
  #18
• Maximum Metric Conductor Size (mm²)
  1
• Barrel Length (mm)
  9.9
• Maximum Operating Temperature (°C)
  105
• Fork Type
  Narrow Fork
• Minimum Copper Conductor Size (AWG)
  #22
• Barrel Length (In.)
  0.39
• Maximum Wire Insulation Diameter (mm)
  3.7
• Maximum Copper Conductor Size (AWG SOL)
  #18
• Minimum Metric Conductor Size (mm²)
  0.5
• Insulation Diameter (mm)
  3.7
Overall Length (mm)
19.8
Tongue Width (mm)
6.1
Maximum Wire Size (AWG)
#18
Barrel Type
Grip Sleeve
Standards Met
UL Listed 587H E52164; CSA Certified LR31212
Stud Hole Size (In.)
1/7
Insulation Material
Nylon
Minimum Copper Conductor Size (AWG STR)
#22
Finish/Coating
Tin-Plated
Maximum Wire Insulation Diameter (In.)
0.15
Overall Width (mm)
6.1
Maximum Copper Conductor Size (AWG)
#18
Wire Strip Length (mm)
5.5
Insulation Diameter (In.)
0.15
Minimum Wire Insulation Diameter (In.)
0.08
Wire Strip Length (In.)
0.22
Minimum Wire Size (AWG)
#22
Color Code
Red
Minimum Wire Insulation Diameter (mm)
2
Seam Type
Butted
Tongue Length (mm)
9.9
Packaging Type
Box
Sub Brand
Pan-Term®
Tongue Thickness (mm)
0.8
Tongue Thickness (In.)
0.03
Part Features
Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Barrel of terminal internally beveled to provide
Product Type
Loose Piece Forks
Stud Hole Size (mm)
3.5
Tongue Length (In.)
0.39
For Use With
CT-100, CT-160, CT-260
Overall Length (In.)
0.78
Tongue Width (In.)
0.24
PN18-6FN-M
6.1
