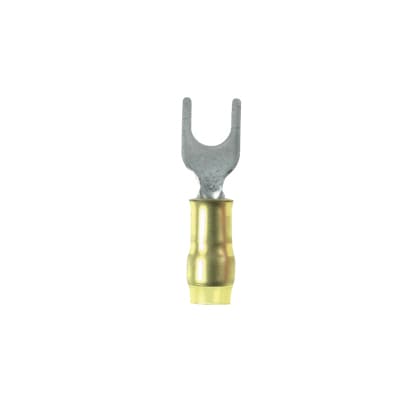

PN22-6F-M Panduit Electronic Components

Product Details

• Minimum Copper Conductor Size (AWG STR)
  #26
• Insulation Type
  Nylon
• Maximum Voltage (kV)
  0.3
• Minimum Wire Size (AWG)
  #26
• Minimum Copper Conductor Size (AWG)
  #26
• Insulation Material
  Nylon
• Base Material
  Copper
• Insulation Diameter (mm)
  2.3
• Stud Hole Size (In.)
  1/7
• For Use With
  CT-520, CT-1525 (A POCKET), CT-2500 (CT-2525CH: A PKT)
• Maximum Copper Conductor Size (AWG SOL)
  #22
• Wire Strip Length (mm)
  4.7
• Barrel Length (mm)
  9.8
• Maximum Wire Insulation Diameter (mm)
  2.3
• Tongue Length (mm)
  9.8
• Packaging Type
  Box
• Fork Type
  Standard
• Maximum Metric Conductor Size (mm²)
  0.5
• Finish/Coating
  Tin-Plated
• Maximum Operating Temperature (°F)
  221
Overall Width (mm)
6.4
PN22-6F-M
6.4
Maximum Copper Conductor Size (AWG STR)
#22
Wire Strip Length (In.)
0.19
Barrel Type
Grip Sleeve
Overall Width (In.)
0.25
Maximum Wire Size (AWG)
#22
Stud Size
#6
Color Code
Yellow
Seam Type
NA
Sub Brand
Pan-Term®
Product Type
Loose Piece Forks
Maximum Copper Conductor Size (AWG)
#22
Maximum Voltage (V)
300
Flammability Rating
UL 94 V-2/UL 94 HB
Stud Hole Size (mm)
3.5
Tongue Thickness (mm)
0.5
Overall Length (mm)
19.6
Insulation Diameter (In.)
0.09
Tongue Length (In.)
0.39
Part Features
Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure
Maximum Operating Temperature (°C)
105
Minimum Metric Conductor Size (mm²)
0.1
Standards Met
American Bureau of Shipping (ABS)
Maximum Wire Insulation Diameter (In.)
0.09
Tongue Width (mm)
6.4
Overall Length (In.)
0.77
Tongue Thickness (In.)
0.02
Minimum Copper Conductor Size (AWG SOL)
#26
Barrel Length (In.)
0.39
Tongue Width (In.)
0.25
