CPS20.121 Puls AC/DC Power Supplies

CPS20.121 on Powermatic Associates
Puls

Part#:CPS20.121

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Mar 23, 2025

Product description

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    65 mm
  • Depth
    127 mm
  • Current Output
    30 A
  • Current Input
    3.3 A
  • Power
    405 W
  • Efficiency
    92.6 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CPS20.121 Related Documents

Datasheet.pdf

Manufacturer warranty

CPS20.121 Puls

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

1

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare CPS20.121 with other products

UL File No.

Phase

Height

Width

Depth

Current Output

Current Input

Power

Efficiency

Selected product

CPS20.121
1 in stock
CPS20.121
Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wid...

UL File No.E198865

Phase1 Phase

Height124 mm

Width65 mm

Depth127 mm

Current Output30 A

Current Input3.3 A

Power405 W

Efficiency92.6 %

QS10.121
1 in stock
QS10.121
Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It feat...

UL File No.E198865

Phase1 Phase

Height124 mm

Width60 mm

Depth117 mm

Current Output15 A

Current Input1.65 A

Power180 W

Efficiency91.8 %

ML15.051
1 in stock
ML15.051
Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates w...

UL File No.E198865

Phase1 Phase

Height75 mm

Width23 mm

Depth91 mm

Current Output3 A

Current Input0.28 A

Power15 W

Efficiency77.2 %

About the manufacturer

Puls

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, DC-UPS systems, redundancy modules, and buffer modules, all designed with cutting-edge technology to ensure maximum reliability and energy efficiency. Puls power supplies are known for their compact design, which saves valuable space in control cabinets, and their superior efficiency ratings, which reduce energy consumption and operational costs. These power supplies also feature robust construction and advanced thermal management, ensuring they perform effectively even under challenging environmental conditions. With wide input voltage ranges and numerous output voltages, Puls products are versatile and adaptable to various industrial sectors, including manufacturing, automation, and process control. By partnering with Puls, Powermatic Associates leverages this outstanding quality and engineering excellence to offer our customers unparalleled power solutions that enhance system reliability and uptime. The modularity and scalability of Puls products allow them to be easily integrated into existing systems, providing flexibility for future expansions. This makes them ideal for customers looking to optimize their infrastructure with minimal disruption. Furthermore, Puls provides comprehensive support and resources, aiding customers in selecting the right power supply solutions tailored to their specific needs. As part of our partnership, Powermatic Associates extends this expert guidance, ensuring seamless integration and optimal performance of Puls products in your operations. Our dedicated team offers valuable insights and technical support, helping you harness the full potential of Puls's innovative technologies. With Powermatic Associates, you benefit not only from the superior quality of Puls products but also from our commitment to delivering exceptional service and rapid delivery. Our extensive inventory ensures that you receive the necessary components promptly, minimizing downtime and enhancing productivity. By choosing Powermatic Associates and Puls, you invest in a partnership focused on driving efficiency and success in your industrial applications.

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

AC/DC Power Supplies

Recently viewed products

Relevant products

CPS20.361 on Powermatic Associates

CPS20.361

Verified stock: 0

PULS CPS20.361 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. This unit has a current consumption of 2.33A at 230Vac input for full 36Vdc output, 4.36A at 120Vac input, and 5.25A at 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and boasts efficiencies of 0.943, 0.93, and 0.924 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.361 are W65mm x H124mm x D127mm. It includes a 900ms start-up delay and offers rise times of 90ms and 200ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and it supports series/parallel operation for increased output power. The power dissipation/losses are rated at 29W, and the output stage capacitance is 3800µF. Its electrical durability varies based on conditions, with up to 516000 hours at 25°C and 6.7A output with 1AC 230Vac input. The ripple is specified at 100mVpp. This AC/DC power supply unit features a 20% power reserve, is part of the C-series, and has ATEX approval. Connection is facilitated through screw-clamp connections, and it accepts a supply voltage range of 85Vac-264Vac. The rated current is 13.3A at 36Vdc, suitable for single-phase networks, with a rated power of 576W under PowerBoost at ambient temperatures less than 45°C and 480W at less than 60°C. The output voltage is adjustable between 36Vdc and 42Vdc, with a 1V turn-ON overshoot, and it offers a hold time of 26ms.

Puls

CPS20.241-D1 on Powermatic Associates

CPS20.241-D1

Verified stock: 0

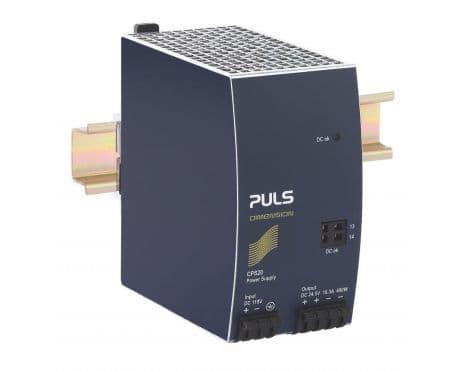

PULS CPS20.241-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W65mm x H124mm x D127mm. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65 mm. The unit has a current consumption of 1.69A with a 300Vdc input for a full 24Vdc output, 4.68A with a 110Vdc input for a full 24Vdc output, and can handle peak inrush currents of up to 10A at 300Vdc input and 13A at 110Vdc input. It boasts an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input, with a degree of protection rated at IP20. The CPS20.241-D1 features a time delay of 850ms for start-up and a rise time of 85ms under nominal input with a constant full current load without load capacitance, and 150ms with 20mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 7000 µF. Its electrical durability varies based on conditions, with up to 549000 hours at 25°C and 10A output with a 1AC 300Vdc input. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This power supply unit also features a 20% power reserve, ATEX approval for galvanic isolation, and screw-clamp connections for installation. It supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with specific turn-ON and shutdown parameters. The rated current is 20A at 24Vdc with a power derating above 60°C to 70°C, and it offers a rated power of 576W under PowerBoost at ambient temperatures below 45°C, and 480W below 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot, and it provides a hold time of 26ms at both 110/300Vdc input.

Puls

CPS20.481-D1 on Powermatic Associates

CPS20.481-D1

Verified stock: 0

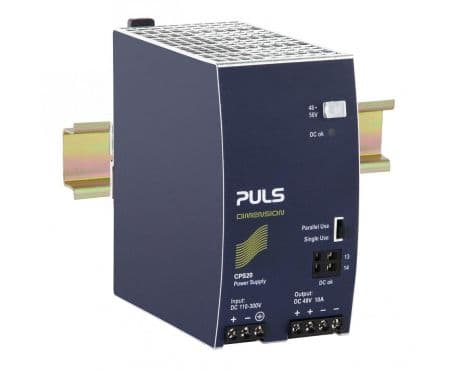

PULS CPS20.481-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 65 mm and dimensions of W65mm x H124mm x D127mm. It consumes 1.69A at 300Vdc input for full 48Vdc output and 4.68A at 110Vdc input for full 48Vdc output, with a peak inrush current of 10A at 300Vdc input and 13A at 110Vdc input. The CPS20.481-D1 offers an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input. It has an IP20 degree of protection and features output overvoltage protection, overload/short-circuit protection, and is capable of series/parallel operation for increased output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 2450 µF. Its electrical durability ranges from 58,000 to 506,000 hours under various conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This power supply unit supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with 85Vac turn-ON voltage. It provides a rated current of 10A at 48Vdc and a rated power of 576W with PowerBoost at ambient temperatures less than 45°C, and 480W at less than 60°C. The output voltage is adjustable between 48Vdc-56Vdc, with a 200mV turn-ON overshoot, and it offers a hold time of 26ms at 110/300Vdc input. Connection is facilitated through screw-clamp connections.
