PISA11.406 Puls Protection Modules (DC)

PISA11.406 on Powermatic Associates
Puls

Part#:PISA11.406

Manufacturer:Puls

Category:Protection Modules (DC)

Product Lifecycle:Active

Product description

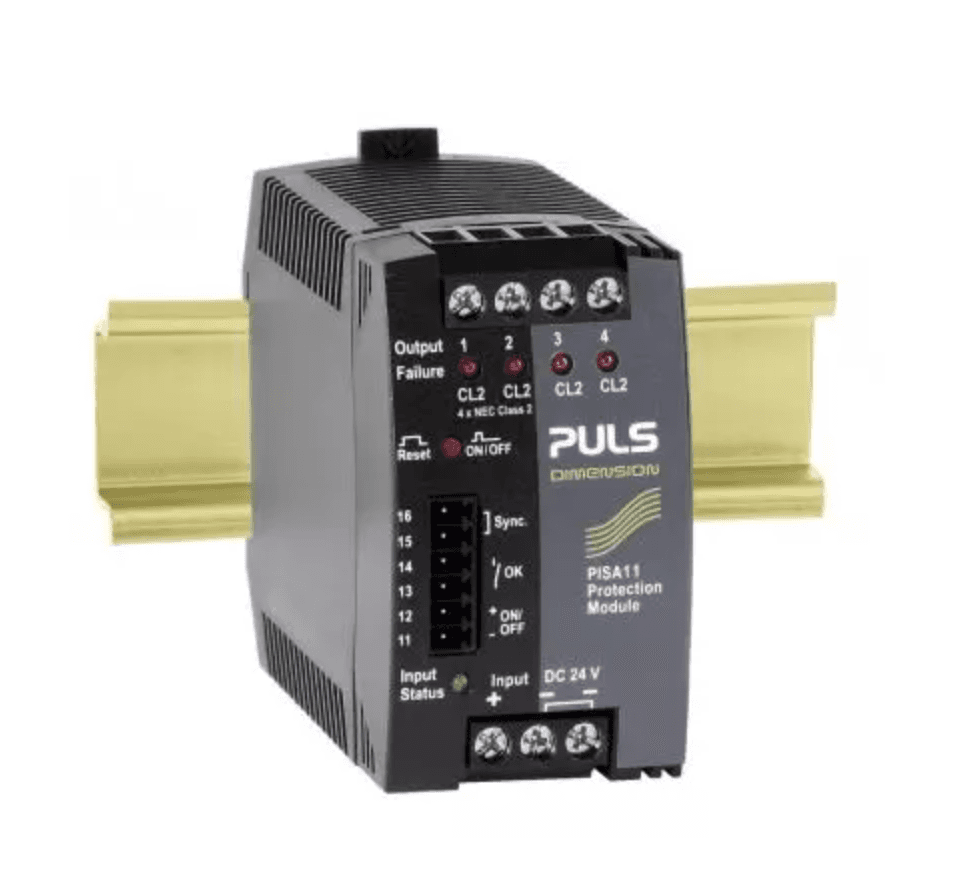

PULS PISA11.406 is a protection unit designed as a 4-channel protection module with 1 input and 4 outputs, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and adheres to NEC Class 2 design specifications. The rated current is 20A, distributed as 10A for each output, with a derating to 0.025A per degree Celsius from +60°C to +70°C. It features screw-clamp connections for secure installation and is part of the PISA11-series. The dimensions of the unit are W45mm x H75mm x D91mm. It requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc typical and 21.4Vdc required to turn on the outputs. The output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include short-circuit protection with an 8ms shutdown time and current limitation with an adjustable threshold between 0.5A and 30A. Power dissipation at full output load with a 24V input is 4.9W. The processing time for turn-on delay of output is 270ms, and the voltage drop across the unit is 197mV or 0.197V. Electrical durability is rated at 155,000 hours at 40°C with 4x5A output and 437,000 hours at 25°C with 4x5A output.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

PISA11.406 Puls

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Puls

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, DC-UPS systems, redundancy modules, and buffer modules, all designed with cutting-edge technology to ensure maximum reliability and energy efficiency. Puls power supplies are known for their compact design, which saves valuable space in control cabinets, and their superior efficiency ratings, which reduce energy consumption and operational costs. These power supplies also feature robust construction and advanced thermal management, ensuring they perform effectively even under challenging environmental conditions. With wide input voltage ranges and numerous output voltages, Puls products are versatile and adaptable to various industrial sectors, including manufacturing, automation, and process control. By partnering with Puls, Powermatic Associates leverages this outstanding quality and engineering excellence to offer our customers unparalleled power solutions that enhance system reliability and uptime. The modularity and scalability of Puls products allow them to be easily integrated into existing systems, providing flexibility for future expansions. This makes them ideal for customers looking to optimize their infrastructure with minimal disruption. Furthermore, Puls provides comprehensive support and resources, aiding customers in selecting the right power supply solutions tailored to their specific needs. As part of our partnership, Powermatic Associates extends this expert guidance, ensuring seamless integration and optimal performance of Puls products in your operations. Our dedicated team offers valuable insights and technical support, helping you harness the full potential of Puls's innovative technologies. With Powermatic Associates, you benefit not only from the superior quality of Puls products but also from our commitment to delivering exceptional service and rapid delivery. Our extensive inventory ensures that you receive the necessary components promptly, minimizing downtime and enhancing productivity. By choosing Powermatic Associates and Puls, you invest in a partnership focused on driving efficiency and success in your industrial applications.
