QS40.481 Puls AC/DC Power Supplies

Name: QS40.481
Brand: Puls

Part#:QS40.481

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

PULS QS40.481 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and is equipped with ATEX approval, a DC-OK relay contact output, and screw-clamp connections. This unit supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W125mm x H124mm x D127mm. The QS40.481 is designed for single-phase networks, offering a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a derating power of 24W at temperatures ranging from +60°C to +70°C. Its rated power is 960W, with a short-term capacity of 1440W for up to 4 seconds, and an adjustable output voltage between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. The unit demonstrates high efficiency rates across various input voltages and has specific inrush current, time delay, hold time, power dissipation/losses, and electrical durability metrics. It also features a ripple of 150mVpp and an output stage capacitance of 3700µF.

Product Details

UL File No.
E198865
Phase
1 Phase
Height
124 mm
Width
125 mm
Depth
127 mm
Current Output
20 A
Current Input
8.6 A
Power
960 W
Efficiency
95 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS40.481 Related Documents

Datasheet.pdf

Similar products from: Puls AC/DC Power Supplies

QS10.121

Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

1 in stock

CPS20.121

Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

1 in stock

CP10.241-S2

Puls

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

4 in stock

ML15.051

Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

1 in stock

SL10.100

Puls

PULS SL10.100 is a power supply unit featuring an EMC filter and DC-OK relay contact output. It operates as an AC/DC PSU/converter with capabilities for parallel operation and a power boost up to 288W. The unit is equipped with screw-clamp connections and has dimensions of W120mm x H124mm x D102mm. It supports a supply voltage range of 85Vac-132Vac / 176Vac-264Vac across various nominal voltages from 100Vac to 240Vac at a frequency of 47-63Hz. The SL10.100 provides a rated current of 10A at 24Vdc with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it can operate within an ambient air temperature range of 0 to +70 °C. The current consumption is 6A with a 115V input and 2.6A with a 230V input, with a maximum inrush of 30A at 264Vac input. This single-phase unit includes protection functions against output overvoltage (35V), short-circuit, overload/short-circuit current, and allows for series/parallel operation with power back immunity (34V). The output voltage is adjustable between 24Vdc and 28Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 288W at temperatures up to +45°C and 240W up to +60°C. It features a hold time of 25ms at 196Vac input, power dissipation/losses of 26.7W at full output load with 230Vac input, a start-up delay of 100ms, a rise time of 5-20ms under nominal input at constant full current load, and a ripple of 30mVpp at 20Hz to 20MHz with a 50Ω load.

1 in stock

ML15.121

Puls

PULS ML15.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 1.3A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, accommodating both single-phase (1AC) or DC networks. The ML15.121 measures 22.5mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It delivers an adjustable output voltage between 12Vdc and 15Vdc, with a rated power of 15W. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency rate of up to 0.83 depending on the input voltage. It has a maximum inrush current consumption of 31A (at 230Vac input), a start-up delay of 780ms, and a rise time of 12ms. Power dissipation is calculated at 3.2W, with an electrical durability of 125,000 hours at +40°C. The output stage features a ripple of 75mVpp and a capacitance of 1650µF.

7 in stock

Manufacturer warranty

QS40.481 Puls

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QS40.481 with other AC/DC Power Supplies products

UL File No.

Phase

Height

Width

Depth

Current Output

Current Input

Power

Efficiency

Selected product

Backordered

QS40.481

Puls

PULS QS40.481 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with...

UL File No.E198865

Phase1 Phase

Height124 mm

Width125 mm

Depth127 mm

Current Output20 A

Current Input8.6 A

Power960 W

Efficiency95 %

1 in stock

QS10.121

Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It feat...

UL File No.E198865

Phase1 Phase

Height124 mm

Width60 mm

Depth117 mm

Current Output15 A

Current Input1.65 A

Power180 W

Efficiency91.8 %

1 in stock

CPS20.121

Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wid...

UL File No.E198865

Phase1 Phase

Height124 mm

Width65 mm

Depth127 mm

Current Output30 A

Current Input3.3 A

Power405 W

Efficiency92.6 %

About the manufacturer

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, D...

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

Relevant products

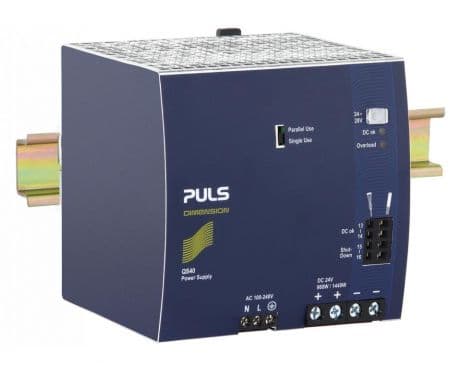

QS40.241

Verified stock: 0

PULS QS40.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and has ATEX approval. The unit provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with screw-clamp connections for installation. It supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. Part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in aluminium. Designed for single-phase networks, it offers a rated power of 960W, extendable to 1440W for short-term applications, and an adjustable output voltage between 24Vdc and 28Vdc. The unit includes protection against overvoltage, with active input inrush current limitation and overload/short-circuit protection. It allows for series or parallel operation for increased output power, with specific conditions for back-feeding loads. The efficiency rates vary with input voltage, and it features specific current consumption, time delay, and hold time values. Power dissipation/losses are detailed alongside electrical durability metrics under various conditions. The output ripple is specified at 100mVpp, with an output stage capacitance of 10200µF.

Puls

UF20.481

Verified stock: 3

PULS UF20.481 is an Uninterruptible Power Supply (UPS) control module, part of the UF-series, designed as a bfr. module with capacitive storage and features a green status LED. It is housed in aluminium and utilizes spring-clamp connections for connectivity. This module measures W64mm x H124mm x D102mm and operates on a supply voltage range of 38.4Vdc to 60Vdc, with a nominal voltage of 48Vdc. It is rated for a current of 20A (bfr.) and is designed for DIN rail mounting. The UF20.481 can operate in ambient air temperatures ranging from -25 to +70°C and is suitable for DC networks. It includes a visual position indicator for Ready, Buffering, and Inhibit statuses. The module offers protection functions including output overvoltage protection, with typical protection at 58Vdc and a maximum of 60Vdc. Buffer modules can be connected in parallel to increase output ampacity or hold-up time. It provides a fixed output voltage of 48Vdc, boasts an efficiency of 0.99 at 48Vdc input, and offers a hold time of 15ms / 0.15s at a 20A load. Power dissipation/losses are 1.9 W at 24Vdc input with 0A output current. Ripple is specified as 250mVpp at 5A, 400mVpp at 10A, and 600mVpp at 20A, across a frequency range of 20Hz to 20MHz at 50Ω. Its electrical durability is rated at 161,000 hours at 40°C and 457,000 hours at 25°C in standby mode.

Puls

SL5.100

Verified stock: 1

PULS SL5.100 is a power supply unit designed with an EMC filter and DC-OK relay contact output. This AC/DC power supply unit (PSU) / converter is capable of a power boost up to 6A and features screw-clamp connections for secure installation. It has dimensions of W64mm x H124mm x D102mm and supports a wide range of supply voltages including AC: 85Vac-132Vac / 176Vac-264Vac and DC: 300Vdc, with a rated current of 5A at 24Vdc. The SL5.100 is designed for DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +70°C. It has a net width of 64 mm and consumes 2.6A (with a 115V input) or 1.4A (with a 230V input), with a maximum inrush of 15A at 264Vac input. This unit is suitable for single-phase (1AC) or DC networks and includes protection functions against output overvoltage, short-circuit, and overload without switching off. The output voltage is fixed at 24Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 120W, with a hold time of 37ms at 196Vac input, and power dissipation/losses of 13.3W at full output load with a 230Vac input. It also features a 100ms start-up delay and a 5-20ms rise time under nominal input with a constant full current load, and a ripple of 50mVpp at 20Hz to 20MHz.

Puls

ML30.100

Verified stock: 2

PULS ML30.100 is a power supply unit designed for AC/DC conversion with a primary function to supply power. It supports DIN rail mounting for easy installation and operates within an ambient air temperature range of -10 to +70°C. This unit is designed according to NEC Class 2 standards, offering a rated current of 1.3A at 24Vdc, and utilizes spring-clamp connections for secure attachment. It accepts a wide range of supply voltages from 85Vac to 264Vac (covering standard voltages like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz, with a turn-ON voltage of 46Vac and a shutdown voltage of 44Vac) and also operates on DC supply voltages from 88Vdc to 375Vdc. The ML30.100 is housed in a PC/ABS blend, ensuring durability, and measures 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 30W, and provides an adjustable output voltage range of 24Vdc to 28Vdc with a 250mV turn-ON overshoot. The unit features protection functions including an NTC for input inrush current limiting, achieves an efficiency of 0.875 at 230Vac input, and has a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input. Power dissipation/losses are rated at 4.3W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML30.106

Verified stock: 1

PULS ML30.106 is a dual output voltage single-phase power supply unit (PSU) and AC/DC-Converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 2.5A at 12Vdc with spring-clamp connections for ease of installation. It supports a wide supply voltage range from 85Vac to 264Vac (with nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz), featuring a 46Vac turn-ON voltage and a 44Vac shutdown voltage. Additionally, it can be powered by DC voltages ranging from 88Vdc to 375Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The ML30.106 has dimensions of W45mm x H75mm x D91mm and is housed in a PC/ABS blend. It is suitable for single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 36W. The output voltage is symmetrical +/-12Vdc to +/-15Vdc, adjustable with a 250mV turn-ON overshoot. It features protection functions including NTC for input inrush current limiting, achieves an efficiency of 0.86 with a 230Vac input, and has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are rated at 5.9 W, and it has a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

Puls

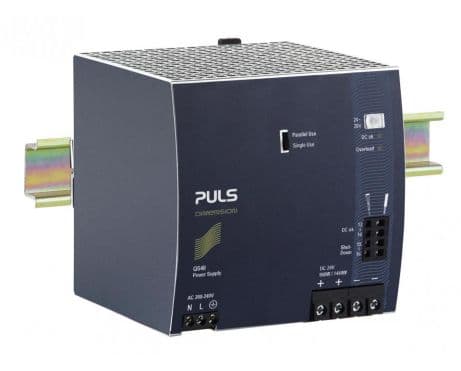

QS40.244
