317FX-SC Red Lion Industrial Automation Components

317FX-SC on Powermatic Associates
Red Lion

Part#:317FX-SC

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

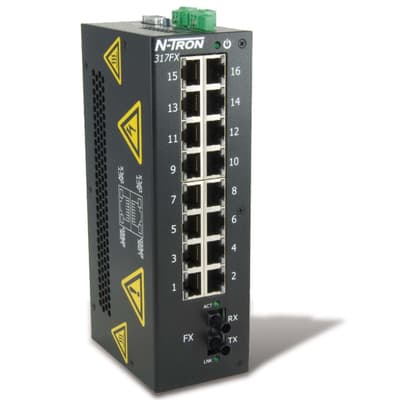

Red Lion 317FX-SC is an industrial Ethernet switch designed for robust networking applications. It operates on a supply voltage of 10-30Vdc, including redundant power inputs for enhanced reliability in demanding environments. This switch features 16 RJ45 ports supporting 10/100BaseTX and one fiber optic SC connector for multi-mode fiber with a 2km rated optical fiber length, ensuring comprehensive connectivity options. The ambient air temperature for storage ranges from -40 to +85 degrees Celsius, accommodating a wide variety of industrial settings. Encased in a metallic body for durability, it adheres to an IP20 rating for protection against solid objects. This 17-port Ethernet switch utilizes DIN rail technology for easy installation and is classified under the N-Tron 300 series with a UNSPSC code specific to its category.

Product Details

  • Main function
    Ethernet Switch
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE IEEE 802.3 cUL RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Connection capacity
    17-ports
  • Material
    Metallic case
  • Benefits
    Compact Size Extended environmental specifications Supports Full/Half Duplex operation LED Link/Activity status indication Store-and-Forward technology Auto Senses Speed and Flow Control MDIX Auto Cable Sensing (RJ-45) Rugged industrial DIN rail enclosure
  • Product series / family name
    Ethernet switches
  • Connection type
    16 x RJ45 ports (10/100BaseTX) 1 x Fiber optic SC connector (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Equivalent to
    317FXSC
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 300 series
  • Mounting mode
    DIN rail
  • Degree of protection
    IP20
  • Order code / Manufacturer SKU
    317FX-SC
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Functions
    Industrial Ethernet switch
  • Ambient air temperature for operation
    -40...+85 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
