317FXE-N-ST-15 Red Lion Industrial Automation Components

317FXE-N-ST-15 on Powermatic Associates
Red Lion

Part#:317FXE-N-ST-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

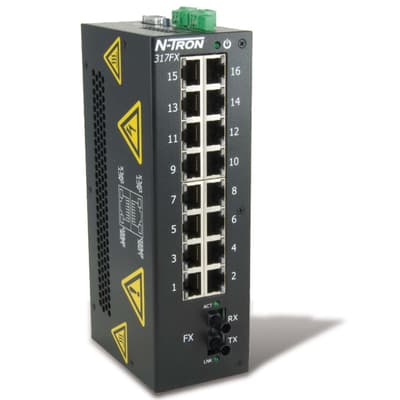

Red Lion 317FXE-N-ST-15 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities and N-View Remote Monitoring Technology. It operates on a supply voltage of 10-30Vdc, including redundant power inputs of 12Vdc and 24Vdc. This switch features 16 RJ45 ports supporting 10/100BaseTX and one fiber optic ST connector for single-mode with a 100BaseFX rated current and a 15km rated optical fiber length. It is built to withstand an ambient air temperature range for storage of -40 to +85 degrees Celsius. The 317FXE-N-ST-15, part of the N-Tron 300-N series, is designed for DIN rail mounting and comes in a metallic case. It includes 17 ports in total and is specified to operate at Ethernet speed with a rated impulse voltage (Uimp) characteristic of Ethernet technology.

Product Details

  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Communication protocol
    Ethernet
  • Secondary brand
    N-Tron
  • Functions
    Industrial process control monitored Ethernet switch N-View Remote Monitoring Technology
  • Material
    Metallic case
  • Equivalent to
    317FXENST15
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 300-N series
  • Mounting mode
    DIN rail
  • Order code / Manufacturer SKU
    317FXE-N-ST-15
  • Main function
    Ethernet Switch
  • Connection capacity
    17-ports
  • Ambient air temperature for operation
    -40...+85 °C
  • Benefits
    RJ-45 Ports Support Full/Half Duplex Operation LED Link/Activity status indication Auto Sensing Duplex / Speed and MDIX (RJ-45) Rugged industrial DIN rail enclosure
  • Connection type
    16 x RJ45 ports (10/100BaseTX) 1 x Fiber optic ST connector (single-mode; 100BaseFX; 15km rated optical fiber)
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
