526FX2-A-ST Red Lion Industrial Automation Components

526FX2-A-ST on Powermatic Associates
Red Lion

Part#:526FX2-A-ST

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

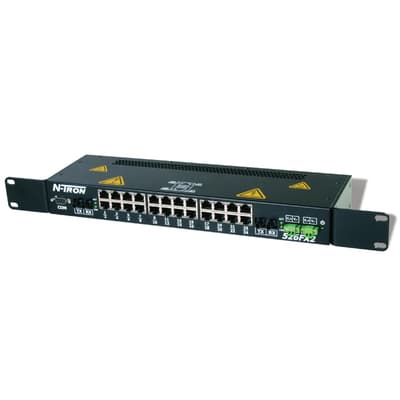

Red Lion 526FX2-A-ST is an Ethernet Switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. The switch operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 24 RJ45 ports supporting 10/100BaseTX, alongside 2 Fiber optic ST connectors for multi-mode fiber with a 2km rated optical length and 100BaseFX rated current. It incorporates advanced management firmware, is designed for rackmount installation in a 19" 1U space, and is housed in a metallic case. The ambient air temperature for storage ranges from -40 to +85 degrees Celsius. The control voltage supports a maximum throughput of 2.6Gbit/s. The technology used in this component is specified for Ethernet with a rated impulse voltage (Uimp). This product is part of the N-Tron 500-A series and is identified with a 26-ports configuration under the UNSPSC code.

Product Details

  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 500-A series
  • Connection capacity
    26-ports
  • Product series / family name
    Ethernet switches
  • Secondary brand
    N-Tron
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Main function
    Ethernet Switch
  • Communication protocol
    Ethernet
  • Functions
    Industrial process control monitored Ethernet switch IGMP Auto Configuration VLAN QoS Trunking or Link aggregation Port Mirroring N-View Remote Monitoring Technology
  • Mounting mode
    Rackmount (19"; 1U)
  • Design
    advanced mngmt. firmware
  • Connection type
    24 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Speed
    Maximum throughput 2.6Gbit/s
  • Material
    Metallic case
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status
  • Ambient air temperature for operation
    -40...+85 °C
  • Order code / Manufacturer SKU
    526FX2-A-ST
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations
  • Equivalent to
    526FX2AST

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

526FX2-A-ST Related Documents

Red Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdfRed Lion - N-View 2 - Data Sheet.pdfRed Lion - N-View OPC - Data Sheet.pdfRed Lion - N-View OPC - Product Manual.pdfRed Lion - N-View 2 - Software Manual.pdf

Similar products from: Red Lion Industrial Automation Components

CBLMAT02 on Powermatic Associates

CBLMAT02

Red Lion

Red Lion CBLMAT02 is a communication cable designed to connect Graphite, DSP, G3, and Modular Controller units to Matsushita FP0. It features a 5-pin male connector on one end and an RJ12 connector on the other, with a total length of 10 feet (3.05 meters). This cordset is specifically crafted for facilitating communication between the mentioned devices.

3 in stock
PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

1 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

16 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock

Manufacturer warranty

526FX2-A-ST Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 526FX2-A-ST with other Industrial Automation Components products

Primary brand

Sub-range name

Connection capacity

Product series / family n...

Secondary brand

Supply voltage (DC)

Main function

Communication protocol

Functions

Mounting mode

Selected product

526FX2-A-ST
Backordered
526FX2-A-ST
Red Lion

Red Lion 526FX2-A-ST is an Ethernet Switch designed for industrial process control with monitored Et...

Primary brandRed Lion

Sub-range nameN-Tron 500-A series

Connection capacity26-ports

Product series / family nameEthernet switches

Secondary brandN-Tron

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Main functionEthernet Switch

Communication protocolEthernet

FunctionsIndustrial process control m...

Mounting modeRackmount (19"; 1U)

104TX
2 in stock
104TX
Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a...

Primary brandRed Lion

Sub-range nameN-Tron 100 series

Connection capacity4-ports

Product series / family nameEthernet switches

Secondary brandN-Tron

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Main functionEthernet Switch

Communication protocolEthernet

FunctionsIndustrial Ethernet switch

Mounting modeDIN rail

G07C0000
2 in stock
G07C0000
Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Primary brandRed Lion

Sub-range nameHMI Rugged Graphite series

Connection capacity5 x module slots

Product series / family nameHMIs (Human-Machine Interfac...

Secondary brand-

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc)

Main functionHMI / Display unit

Communication protocolRS-232 RS-422 RS-485 Etherne...

FunctionsHMI operator touchscreen pan...

Mounting mode-

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

MFI1FRL17N4 on Powermatic Associates

MFI1FRL17N4

Novanta IMS

Novanta IMS MFI1FRL17N4 is a stepper motor controller within the Stepper motor controllers sub-range, designed under the MicroDrive series. It operates with a supply voltage range of 12Vdc to 48Vdc, nominally at 24Vdc, and supports a rated current of 3A. This controller is equipped for DC stepper motor drive functions and features an ambient air temperature for operation between 0 and +65 °C. For connectivity, it includes 30cm / 12" bare end flying leads, a 10-pin wire crimp connector, and a 4-pin wire crimp connector. Communication with the controller is facilitated through RS-422 and RS-485 protocols. It also offers 4 x digital outputs (sinking; NPN) and 4 x digital inputs (sourcing; NPN). The device is designed to be stored in conditions ranging from -25 to +70 °C ambient air temperature.

0 in stock

Relevant products

526FXE2-N-ST-80 on Powermatic Associates

526FXE2-N-ST-80

Verified stock: 0

Red Lion 526FXE2-N-ST-80 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities and N-View Remote Monitoring Technology. It operates on a supply voltage of 10-30Vdc, including redundant power inputs of 12Vdc and 24Vdc. This model features 24 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode with a 100BaseFX rated current and an 80km rated optical fiber length. It is designed to withstand an ambient air temperature range for storage of -40 to +85 degrees Celsius. The Ethernet switch is rackmountable, fitting a standard 19" 1U space, and is encased in a metallic case. It is part of the N-Tron 500-N series and is specified by the manufacturer to have 26 ports. The UNSPSC code for this product is not provided.

Red Lion

526FXE2-A-SC-40 on Powermatic Associates

526FXE2-A-SC-40

Verified stock: 0

Red Lion 526FXE2-A-SC-40 is an Ethernet Switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This switch operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 24 RJ45 ports (10/100BaseTX) and 2 Fiber optic SC connectors (single-mode) with a 100BaseFX rated current and a 40km rated optical fiber length. The device includes advanced management firmware, supports an ambient air temperature for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. It is designed for rackmount (19"; 1U) installation and features a metallic case. The product specifications include 26 ports and it falls under the N-Tron 500-A series, with a UNSPSC code provided for classification.

Red Lion

526FXE2-A-SC-80 on Powermatic Associates

526FXE2-A-SC-80

Verified stock: 0

Red Lion 526FXE2-A-SC-80 is an Ethernet Switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This switch operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 24 RJ45 ports (10/100BaseTX) and 2 Fiber optic SC connectors (single-mode) with a 60km rated optical fiber length for 100BaseFX. The device is equipped with advanced management firmware, supports an ambient air temperature for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. It utilizes Rackmount (19"; 1U) technology with a metallic case and is classified under the N-Tron 500-A series with a 26-ports configuration.

Red Lion

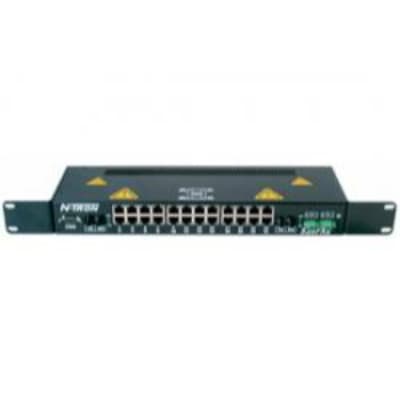

526FXE2-A-ST-15 on Powermatic Associates
