Product description

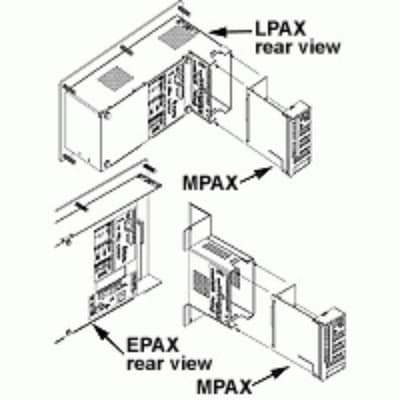

Red Lion MPAXCK00 is a digital timer belonging to the MPAX series I/O modules. This clock/timer module operates on a supply voltage range of 85-250Vac, accommodating various standard voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac.

Product Details

  • Sub-range name
    MPAX series I/O modules
  • Product series / family name
    Process timers
  • Compliant with standard(s)
    CE
  • Order code / Manufacturer SKU
    MPAXCK00
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Technical compatibility with
    for LPAX series devices
  • Main function
    Timer (Digital)
  • Functions
    Clock/timer module

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MPAXCK00 Related Documents

Red Lion - LPAX-MPAX - Personality Module Selector Guide.pdf
