MPAXR020 Red Lion Industrial Automation Components

MPAXR020 on Powermatic Associates
Red Lion

Part#:MPAXR020

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

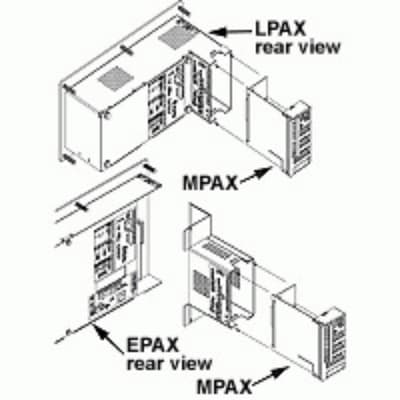

Red Lion MPAXR020, part of the MPAX series I/O modules, is an I/O unit designed with a rate module function. It operates on a supply voltage range of 85-250Vac, accommodating various standard voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac.

Product Details

  • Sub-range name
    MPAX series I/O modules
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Order code / Manufacturer SKU
    MPAXR020
  • Functions
    Rate module
  • Main function
    I/O unit
  • Compliant with standard(s)
    CE
  • Primary brand
    Red Lion
  • Product series / family name
    Process indicators
  • Technical compatibility with
    for MPAX series devices

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MPAXR020 Related Documents

Red Lion - LPAX-MPAX - Personality Module Selector Guide.pdf
