NT24K-DC1-PT Red Lion Industrial Automation Components

NT24K-DC1-PT on Powermatic Associates
Red Lion

Part#:NT24K-DC1-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

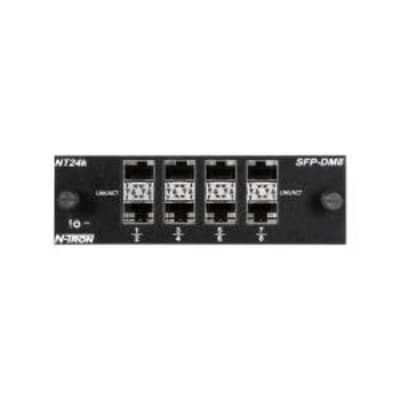

Red Lion NT24K-DC1-PT is an all-Gigabit (GbE/GigE) modular industrial managed Ethernet switch designed for rackmount installation, specifically fitting a 19" rack at 1U height. It operates within an ambient air temperature range of -40 to +85°C and features a metallic case. This model includes 1 x redundant power input for enhanced reliability and supports a supply voltage range of 18-49Vdc, accommodating both 24Vdc and 48Vdc systems. It is part of the N-Tron NT24k series and offers connection capacity through 3 x port modules. The communication protocol used is Ethernet, ensuring compatibility with a wide range of industrial network configurations.

Product Details

  • Primary brand
    Red Lion
  • Communication protocol
    Ethernet
  • Equivalent to
    NT24KDC1PT
  • Secondary brand
    N-Tron
  • Functions
    All-Gigabit (GbE/GigE) modular industrial managed Ethernet switch
  • Connection type
    3 x port modules
  • Compliant with standard(s)
    CE EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    18-49Vdc (24Vdc / 48Vdc)
  • Mounting mode
    Rackmount (19"; 1U)
  • Material
    Metallic case
  • Sub-range name
    N-Tron NT24k series
  • Connection capacity
    3-slots
  • Design
    1 x redundant pwr. input PTP version
  • Order code / Manufacturer SKU
    NT24K-DC1-PT
  • Main function
    Ethernet Switch
  • Ambient air temperature for operation
    -40...+85 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
