PAX2D000 Red Lion Industrial Automation Components

PAX2D000 on Powermatic Associates
Red Lion

Part#:PAX2D000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PAX2D000 is a digital meter designed for strain gauge/load cell measurement applications. It features a 1/8 DIN size (96x48mm) with a display that includes 18mm red/orange/green and 14mm green digits, facilitating clear visibility. This meter offers three user inputs and connects via USB. It supports a wide range of supply voltages, including AC options from 50-250Vac (with specific values like 48Vac, 100Vac, up to 240Vac) and DC options from 21.6-250Vdc (including 24Vdc, 48Vdc, up to 250Vdc), making it versatile for various power supplies. The PAX2 series meter is designed with an IP65 NEMA 4X degree of protection, ensuring durability in different environments. It has a frequency range for analog input sampling rate from 5Hz to 160Hz and includes one analog input for strain gauge input with a 4-wire bridge or 2-wire single-ended configuration, offering 24-bits conversion for precise measurements. Additionally, it is equipped with three digital inputs (Sink/Source) for user-defined functionality.

Product Details

  • Display
    2 rows x positive image backlight LCD display 18mm 6-digits high red / orange / green characters (top row) 8.9mm high 9-digits green characters (bottom row)
  • Degree of protection
    IP65 NEMA 4X
  • Replaces
    GEM52060 GEM52160 PAXLC800 APLT0800
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    50-250Vac (48Vac / 100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Functions
    Universal digital input counter / rate meter / tachometer
  • Order code / Manufacturer SKU
    PAX2D000
  • Main function
    Counter (Digital)
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Sub-range name
    PAX2 series
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Product series / family name
    Process indicators
  • Supply voltage (DC)
    21.6-250Vdc (24Vdc / 48Vdc / 60Vdc / 72Vdc / 100Vdc / 110Vdc / 120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc)
  • Benefits
    Main display offers three programmable / easy-to-read colors (red / orange / green) The display color can be tied to the setpoints The 9-digits display accommodates totalizingapplications that exceed the normal 6-digits displays Stock one meter for multip
  • Design
    1/8 DIN (96x48mm) 18mm red/orange/green / 14mm green digits
  • Digital inputs
    2 x digital inputs (high-speed counters; Sink/Source; 35kHz max) (MAIN INPUTS) 2 x digital inputs (Sink/Source) (USER INPUT)
  • Mounting mode
    Flush / door

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PAX2D000 Related Documents

Red Lion - PAX2D - Product Manual.pdfRed Lion - PAX2D - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

1 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

15 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock

Manufacturer warranty

PAX2D000 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PAX2D000 with other Industrial Automation Components products

Display

Degree of protection

Replaces

Primary brand

Supply voltage (AC)

Functions

Order code / Manufacturer...

Main function

Dimensions

Sub-range name

Selected product

PAX2D000
Backordered
PAX2D000
Red Lion

Red Lion PAX2D000 is a digital meter designed for strain gauge/load cell measurement applications. I...

Display2 rows x positive image back...

Degree of protectionIP65 NEMA 4X

ReplacesGEM52060 GEM52160 PAXLC800 A...

Primary brandRed Lion

Supply voltage (AC)50-250Vac (48Vac / 100Vac / ...

FunctionsUniversal digital input coun...

Order code / Manufacturer SKUPAX2D000

Main functionCounter (Digital)

Dimensions1/8 DIN horizontal (W96mm x ...

Sub-range namePAX2 series

C48CS003
1 in stock
C48CS003
Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 D...

Display2 rows x 6-digits reflective...

Degree of protectionIP65 NEMA 4X

Replaces-

Primary brandRed Lion

Supply voltage (AC)85-250Vac (100Vac / 110Vac /...

FunctionsSingle preset digital counte...

Order code / Manufacturer SKU-

Main functionCounter (Digital)

Dimensions-

Sub-range nameC48 series

PAXT0010
1 in stock
PAXT0010
Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 u...

Display1 row x 5-digits red charact...

Degree of protectionIP65 NEMA 4X

Replaces-

Primary brandRed Lion

Supply voltage (AC)-

FunctionsUniversal digital temperatur...

Order code / Manufacturer SKU-

Main functionThermometer (Digital)

Dimensions-

Sub-range namePAX series

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

Relevant products

PAX2A000 on Powermatic Associates

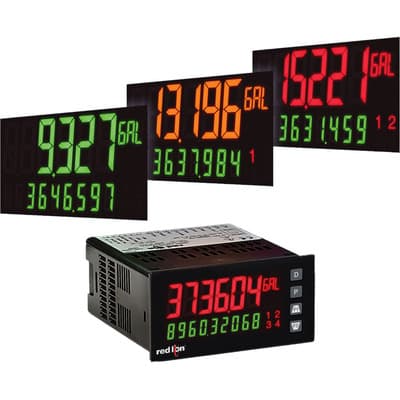

PAX2A000
