9340050 Rittal Electronic Components
Part#:9340050
Manufacturer:Rittal
Category:Electronic Components
Product Lifecycle:Active
Oct 31, 2026
Product description
SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar WH: 15x5-30x10 mm, UL design
Product Details
- Color RAL 7035
- Rated operating voltage 1000 V, 3~, 1500 V (DC)
- ETIM 6.0 EC001166
- Number of poles 3-pole
- Material Polyamide, Fire protection corresponding to UL 94-V0
- EAN 4028177525573
- With internal attachment yes
- ETIM 7.0 EC001166
- Center-to-center spacing of busbars 60
- Customs tariff number 85469010
- Note The use of a base tray is required for UL applications., UL approval only applies in conjunction with AC application
- Packaging unit 4 pc(s)
- eCl@ss 8.0/8.1 27400607
- Suitable for busbars With dimensions (mm): 15 x 5 - 30 x 10
- Product description SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar WH: 15x5-30x10 mm, UL design
- eCl@ss 6.0/6.1 27400607
- Weight/packaging unit 0.696 kg ( 1.5lb. )
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9340050 on Powermatic Associates is $148.00. Order now.
9340050 Related Documents
Similar products from: Rittal Electronic Components
This item can ship within 24h!
Manufacturer warranty
9340050 Rittal
$148.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$148.00
$148.00 each
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 9340050 with other Electronic Components products
Color
Rated operating voltage
ETIM 6.0
Number of poles
Material
EAN
With internal attachment
ETIM 7.0
Center-to-center spacing ...
Customs tariff number
Selected product
9340050
Rittal
SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar WH: 15x5-30x10 mm, UL design
ColorRAL 7035
Rated operating voltage1000 V, 3~, 1500 V (DC)
ETIM 6.0EC001166
Number of poles3-pole
MaterialPolyamide, Fire protection c...
EAN4028177525573
With internal attachmentyes
ETIM 7.0EC001166
Center-to-center spacing of busbars60
Customs tariff number85469010
3092000
Rittal

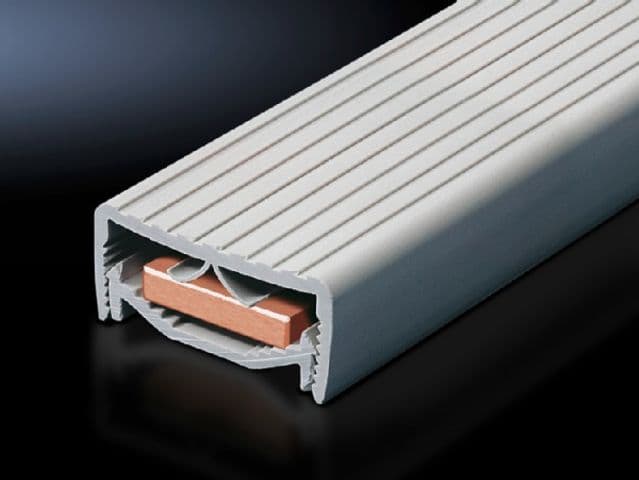

SV Busbar cover section, for demension WH: 12x5-30x10 mm, L: 1000 mm/section
