8341604 SAB Servo Motor Cables

8341604 on Powermatic Associates
SAB

Part#:8341604

Manufacturer:SAB

Category:Servo Motor Cables

Product Lifecycle:Active

Product description

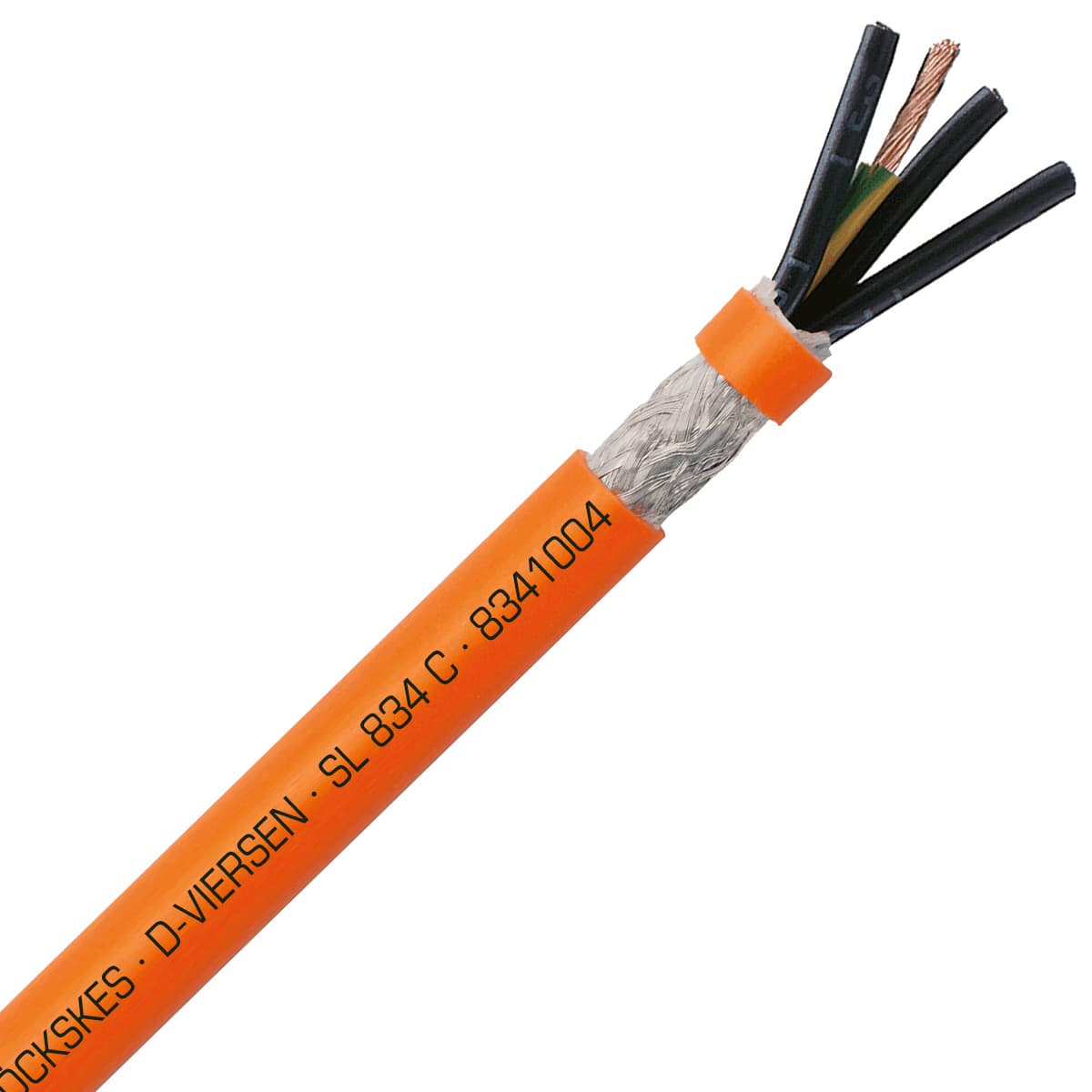

SL 834 C - 16 AWG/4c, shielded oil resistant continuous flex servo motor halogen-free cable UL, CSA, CE, RoHS

Product Details

  • Color
    Orange
  • Weight
    38.56 g
  • Chemical Resistant
    YES
  • Oil Resistant
    Yes
  • UV Resistant
    YES
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Power, Motor & Drives
  • Gauge
    16 AWG
  • Number of conductors
    4
  • Cable configuration
    16 AWG (≈ 84/34)/4c
  • Stranding type
    bare copper strands, class 6
  • Insulation type
    Special Polymer
  • Shielded
    Yes
  • Voltage
    1000
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -50°C to +90°C
  • Outside diameter (OD)
    0.354 in
  • UOM
    ft
  • CSA Certification
    YES
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

SAB 8341604 Servo Motor Cable is part of SL 834 C product family, and is designed for Power, Motor & Drives applications. This cable is 16 AWG with 4 conductors, and shielded 16 AWG (≈ 84/34)/4c cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper strands, class 6 stranding. It has 0.354 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.

8341604 Related Documents

SL_834_C.pdf
