8501KUR13P14V20 Schneider Electric Industrial Automation Components

8501KUR13P14V20 on Powermatic Associates
Schneider Electric

Part#:8501KUR13P14V20

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

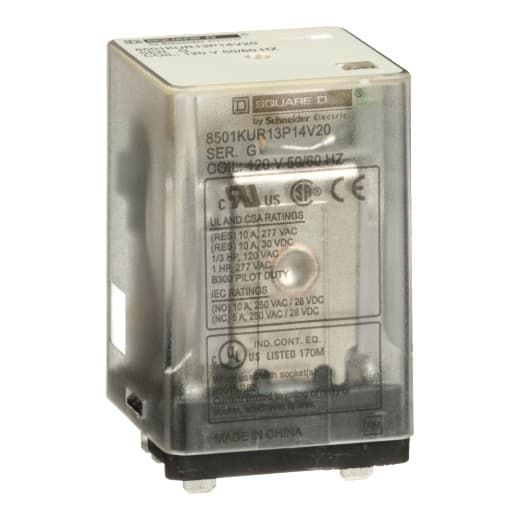

Schneider Electric - 8501KUR13P14V20

Product Details

  • Breaking Capacity
    3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 10 A 30 V DC resistive control circuit UL 508
  • Maximum Switching Voltage
    300 V AC 30 V DC
  • Horsepower Rating
    1 hp 277 V AC 0.33 hp 120 V AC
  • Operating Time
    20 ms - pick-up 20 ms - drop-out
  • For Use With
    8501NR82
  • Shape Of Pins
    Spade
  • Contact Material
    Silver alloy (AgNi)
  • Pilot Light
    Indicator light relay energised LED
  • [Uc] Control Circuit Voltage
    120 V AC
  • Contact Composition
    3PDT
  • Mounting Type
    Socket
  • Relay Type
    General purpose
  • Product Type
    Relay
  • Product Range
    8501K

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8501KUR13P14V20 on Powermatic Associates is $37.58. Order now.
