8536SDO1V02S Schneider Electric Industrial Automation Components

8536SDO1V02S on Powermatic Associates
Schneider Electric

Part#:8536SDO1V02S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

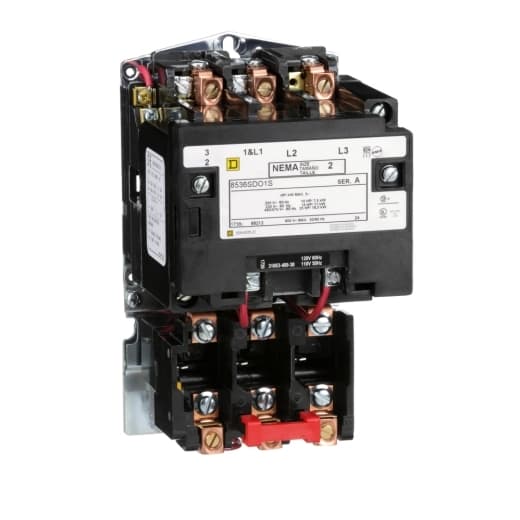

Schneider Electric - 8536SDO1V02S

Product Details

  • Maximum Voltage Rating
    600 V AC
  • Control Units
    No control units
  • Product Range
    S
  • Pilot Light
    Without pilot light
  • Height
    7.81 in (198.37 mm)
  • Terminal Type
    Screw clamp terminals
  • NEMA Size
    2
  • Number Of Poles
    3P
  • Auxiliary Contacts
    Without
  • Starter Type
    Non reversing
  • Rated Current
    45 A
  • Depth
    4.94 in (125.48 mm)
  • Type Of Overload
    Melting alloy 3
  • Control Circuit Type
    Separate control circuit
  • Width
    4.31 in (109.47 mm)
  • Phase
    3 phase
  • Product Type
    Motor starter
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SDO1V02S on Powermatic Associates is $1,013.00. Order now.

8536SDO1V02S Related Documents

Instruction Sheet-1631029331061.pdfProduct Datasheet-1631029331057.pdfCatalog-1631029331065.pdf
