8903LO30V01 Schneider Electric Electronic Components

8903LO30V01 on Powermatic Associates
Schneider Electric

Part#:8903LO30V01

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

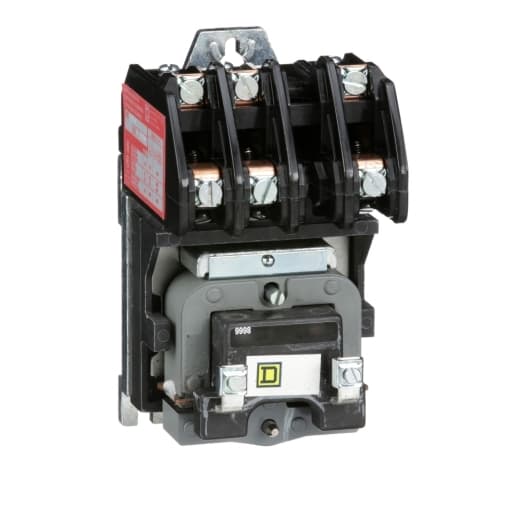

8903L electrically held lighting contactor, 3 P, 3 NO, 30 A, 600 V, 24 V 60 Hz c

Product Details

  • Control Circuit
    Separate control circuit
  • Number Of Poles
    3P 3 NO
  • Range Of Product
    8903L
  • Pilot Light
    No indicator
  • Product Or Component Type
    Electrically Held Lighting Contactor
  • Height
    5.00 in (127 mm)
  • Control Circuit Voltage
    24 V AC 60 Hz
  • Width
    2.87 in (73 mm)
  • Hold-In Power Consumption In VA
    30 VA 60 Hz
  • Electrical Connection
    Screw-clamp terminals
  • Inrush Power In VA
    150 VA 60 Hz
  • Depth
    3.11 in (79 mm)
  • Control Unit
    No control units
  • Current Rating
    20 A tungsten 30 A fluorescent

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8903LO30V01 on Powermatic Associates is $446.00. Order now.

8903LO30V01 Related Documents

Product Datasheet-1631037036059.pdfCatalog-1631037036066.pdf
