8910DPA63V09 Schneider Electric Industrial Automation Components

8910DPA63V09 on Powermatic Associates
Schneider Electric

Part#:8910DPA63V09

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

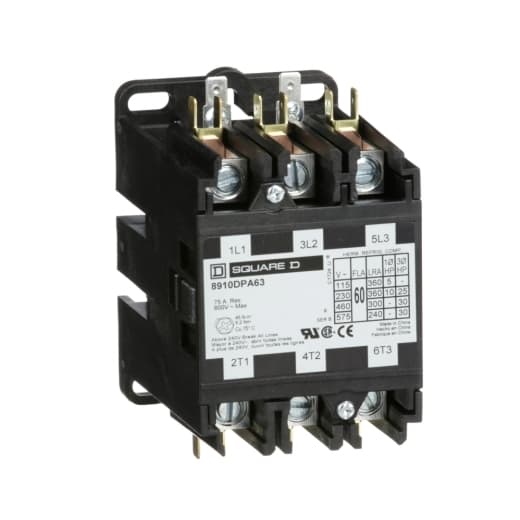

Schneider Electric - 8910DPA63V09

Product Details

  • Product Or Component Type
    Definite Purpose Contactor
  • Range Of Product
    DPA
  • Number Of Poles
    3P
  • Pole Contact Composition
    3 NO
  • [Ue] Rated Operational Voltage
    600 V AC
  • Line Rated Current
    60 A
  • Phase
    3 phase
  • Electrical Connection
    Box lugs Quick connect terminals
  • [Uc] Control Circuit Voltage
    208...240 V AC 60 Hz 220 V AC 50 Hz
  • Locked Rotor Rated Current
    360 A 277 V AC 300 A 460 V AC 240 A 575 V AC
  • Maximum Horse Power Rating
    5 hp 115 V AC, 1 phase 10 hp 230 V AC, 1 phase 30 hp 460 V AC, 3 phase 30 hp 575 V AC, 3 phase 25 hp 230 V AC, 3 phase

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8910DPA63V09 on Powermatic Associates is $246.02. Order now.
