9070T300D1 Schneider Electric Industrial Automation Components

9070T300D1 on Powermatic Associates
Schneider Electric

Part#:9070T300D1

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

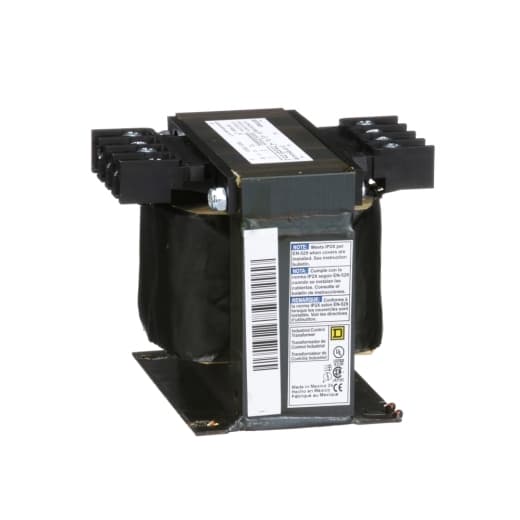

Schneider Electric - 9070T300D1

Product Details

  • Product Type
    Industrial Control Transformer
  • Type
    T
  • Height
    3.84 in (97.54 mm)
  • Electrical Connection
    Screw clamp terminals
  • Temperature Rise
    80 °C
  • Fingersafe Cover Compatibility
    FSC2
  • Number Of Phases
    1 phase
  • Material
    Copper winding
  • Width
    4.5 in (114.30 mm)
  • Depth
    4.74 in (120.40 mm)
  • Power Rating
    300 VA UL 300 VA CSA 300 VA NOM 200 VA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9070T300D1 on Powermatic Associates is $383.00. Order now.
