A9MEM3150 Schneider Electric Industrial Automation Components

A9MEM3150 on Powermatic Associates
Schneider Electric

Part#:A9MEM3150

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

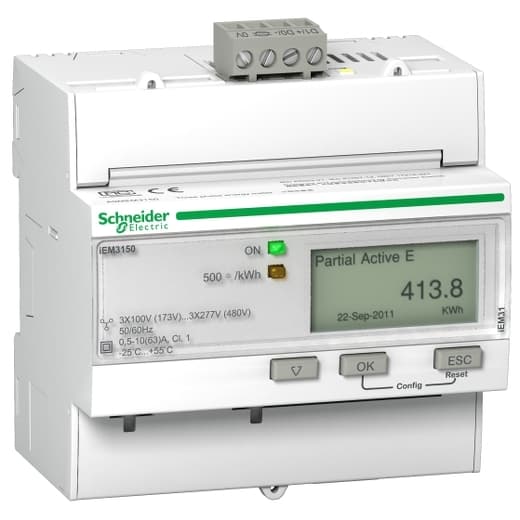

Schneider Electric A9MEM3150 is a digital energy meter within the iEM sub-range, featuring an 8-digit graphic LCD display. It is designed for direct current measurement up to 63A and supports Modbus communication protocol. This meter offers a degree of protection rated at IP40 and is suitable for DIN rail mounting. It is compatible with various types of networks, including 1P+N, 3P, and 3P+N, and operates within a network frequency range of 50-60 Hz. The ambient air temperature for operation is specified between -25 and +55 °C. The A9MEM3150 has a sampling rate of 1,600 Hz for 50Hz networks and 1,920 Hz for 60Hz networks, with a supply voltage range of 277-480 V at 50-60Hz. Its measurement functions include voltage and current.

Product Details

  • Product Certifications
    CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL
  • Standards
    IEC 62053-23 IEC 62053-21 UL 61010-1 IEC 61010 IEC 61557-12 IEC 61036
  • Type Of Measurement
    Active energy Current Voltage Active power
  • Poles Description
    3P 3P + N 1P + N
  • Local Signalling
    Green indicator light power ON Yellow flashing LED accuracy checking Yellow indicator light communications are active on the Modbus port (Modbus)
  • Accuracy Class
    Class 1 active energy conforming to IEC 62053-21 Class 1 active energy conforming to IEC 61557-12 Class B active energy EN 50470-3
  • Device Application
    Partial meter Sub billing
  • Network Frequency
    50 Hz 60 Hz
  • Rated Voltage
    100…277 V 173…480 V
  • Connections - Terminals
    screw terminals 0.02 in² (16 mm²)
  • Number Of Inputs
    0
  • Mounting Mode
    Clip-on
  • Measurement Current
    0…63 A
  • Overvoltage Category
    III
  • Mounting Support
    DIN rail
  • Number Of Outputs
    0
  • Communication Port Support
    Screw terminal block RS485
  • Communication Port Protocol
    Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
  • Sampling Rate
    32 samples/cycle
  • Display Type
    LCD display
  • Maximum Value Measured
    99999999.9 kWh
  • Line Rated Current
    63 A
  • Technology Type
    Electronic
  • Input Type
    direct input
  • Product Or Component Type
    Energy meter
  • Range Of Product
    Acti 9 iEM3000
  • Range
    Acti 9
  • Device Short Name
    IEM3150

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A9MEM3150 on Powermatic Associates is $670.38. Order now.
