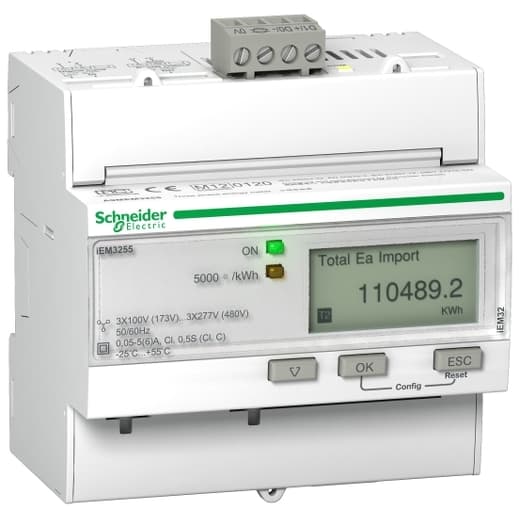

A9MEM3255 Schneider Electric Industrial Automation Components

Product Details

• Sampling Rate
  32 samples/cycle
• Output Voltage
  5...40 V DC@50 mA
• Metering Type
  Active, reactive, apparent energy (signed, four quadrant)
• Display Type
  LCD display
• Number Of Outputs
  1 digital (static)
• Range
  Acti 9
• Input Type
  external CT 1 A or 5 A
• Tariff Input
  Tariff 4)
• Device Short Name
  IEM3255
• Measurement Current
  1…32767000 mA
• Product Or Component Type
  Energy meter
• Range Of Product
  Acti 9 iEM3000
• Maximum Value Measured
  99999999 MWh
• Technology Type
  Electronic
• Mounting Support
  DIN rail
• Communication Port Protocol
  Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
• Overvoltage Category
  III
• Mounting Mode
  Clip-on
• Communication Port Support
  Screw terminal block RS485
• Number Of Inputs
  1 digital 0...5 V/11...40 V 24 V DC
Network Frequency
60 Hz 50 Hz
Line Rated Current
5 A 1 A
Rated Voltage
100…277 V 173…480 V
Connections - Terminals
Current circuit screw terminals 0.01 in² (6 mm²) Voltage circuit screw terminals 0.00 in² (2.5 mm²)
Poles Description
3P + N 1P + N 3P
Device Application
Multi-tariff Partial meter Sub billing
Accuracy Class
Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy IEC 61557-12 Class C active energy EN 50470-3
Type Of Measurement
Active and reactive energy Active and reactive power Current Voltage
Local Signalling
Green indicator light power ON Yellow flashing LED accuracy checking alarm overload Yellow indicator light communications are active on the Modbus port (Modbus)
Standards
IEC 61036 IEC 62053-23 UL 61010-1 IEC 61010 IEC 62053-22 IEC 61557-12
Product Certifications
CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL MID EN 50470-3 sub-meter) MID EN 62052 sub-m
