A9MEM3355 Schneider Electric Industrial Automation Components

A9MEM3355 on Powermatic Associates
Schneider Electric

Part#:A9MEM3355

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

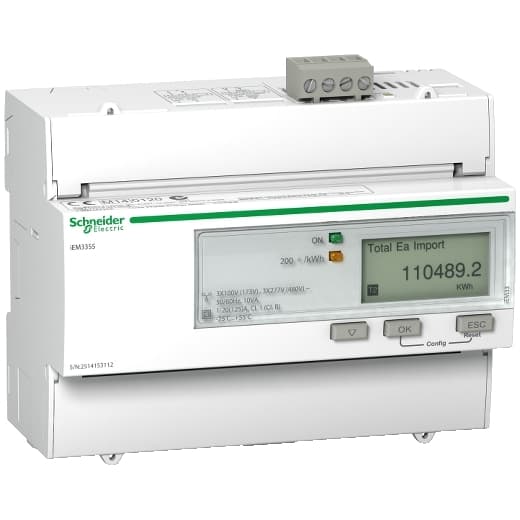

Schneider Electric A9MEM3355 is a digital meter designed for energy measurement. It is part of the iEM sub-range and features an 8-digit graphic LCD display. This model is capable of direct current measurement up to 125A and supports Modbus communication, along with 1 Digital Input (DI) and 1 Digital Output (DO). It offers 4 tariffs for flexible billing options. The A9MEM3355 has an IP40 degree of protection and is mounted on a DIN rail. It operates on network types 1P+N, 3P, and 3P+N with a network frequency range of 50-60 Hz. The ambient air temperature for operation ranges from -25 to +55°C. Its sampling rate is 1,600 Hz for a 50Hz network and 1,920 Hz for a 60Hz network, with 32 samples per cycle. The meter's measurement functions include voltage and current.

Product Details

  • Communication Port Protocol
    Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
  • Metering Type
    Active, reactive, apparent energy (signed, four quadrant)
  • Technology Type
    Electronic
  • Overvoltage Category
    III
  • Measurement Current
    0…125 A
  • Number Of Inputs
    1 digital 0...5 V/11...40 V 24 V DC
  • Mounting Mode
    Clip-on
  • Range
    Acti 9
  • Line Rated Current
    125 A
  • Maximum Value Measured
    99999999.9 kWh
  • Mounting Support
    DIN rail
  • Product Or Component Type
    Energy meter
  • Display Type
    LCD display
  • Range Of Product
    Acti 9 iEM3000
  • Tariff Input
    Tariff 4)
  • Connections - Terminals
    screw terminals 0.08 in² (50 mm²)
  • Device Short Name
    IEM3355
  • Sampling Rate
    32 samples/cycle
  • Number Of Outputs
    1 digital (static)
  • Input Type
    direct input
  • Communication Port Support
    Screw terminal block RS485
  • Output Voltage
    5...40 V DC@50 mA
  • Rated Voltage
    100…277 V 173…480 V
  • Network Frequency
    50 Hz 60 Hz
  • Device Application
    Multi-tariff Sub billing Partial meter
  • Poles Description
    3P + N 1P + N 3P
  • Accuracy Class
    Class 1 active energy conforming to IEC 62053-21 Class 1 active energy conforming to IEC 61557-12 Class B active energy EN 50470-3
  • Local Signalling
    Green indicator light power ON Yellow flashing LED accuracy checking alarm overload Yellow indicator light communications are active on the Modbus port (Modbus)
  • Type Of Measurement
    Active and reactive energy Active and reactive power Current Voltage
  • Standards
    IEC 61010 IEC 61036 IEC 61557-12 IEC 62053-23 UL 61010-1 IEC 62053-21
  • Product Certifications
    CE IEC 61010 safety) CE EN 61557-12 power monitor) CE IEC 61326-1 EMC) CULus UL 61010 safety) CULus ANSI C12.20 sub-meter) EAC sub-meter) RCM NMI M 6-1 sub-meter) UL MID EN 50470-3 sub-meter) MID EN 62052 sub-m

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A9MEM3355 on Powermatic Associates is $843.38. Order now.

A9MEM3355 Related Documents

Instruction Sheet-1631036223492.pdfCatalog-1631036223487.pdfProduct Datasheet-1631036223490.pdf
