Powermatic Associates Logo

AK5PA532 Schneider Electric Industrial Automation Components

AK5PA532 on Powermatic Associates
Schneider Electric

Part#:AK5PA532

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

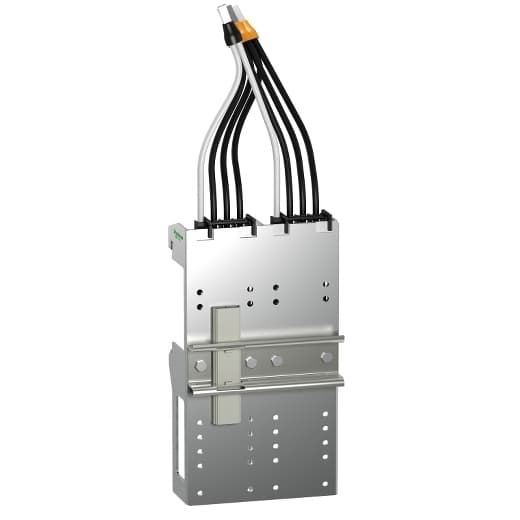

Schneider Electric - AK5PA532

Product Details

  • [Ith] Conventional Free Air Thermal Current
    25 A
  • Product Name
    HK
  • Depth
    2.48 in (63 mm)
  • I²t On Activation
    200000 A².s
  • 9 Mm Pitches
    12
  • Width
    4.17 in (106 mm)
  • Height
    7.48 in (190 mm)
  • Range
    Linergy
  • Product Or Component Type
    Mounting plate
  • [Ui] Rated Insulation Voltage
    690 V IEC 60439-1
  • Poles Description
    3P
  • Net Weight
    1.57 lb(US) (0.71 kg)
  • Number Of Cables
    3 0.01 in² (4 mm²) 221 °F (105 °C) 3 0.01 in² (4 mm²)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AK5PA532 on Powermatic Associates is $363.00. Order now.

AK5PA532 Related Documents

Product Datasheet-1631036857218.pdfCatalog-1631036857231.pdfInstruction Sheet-1631036857229.pdf
