BDL36035 Schneider Electric Industrial Automation Components

BDL36035 on Powermatic Associates
Schneider Electric

Part#:BDL36035

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

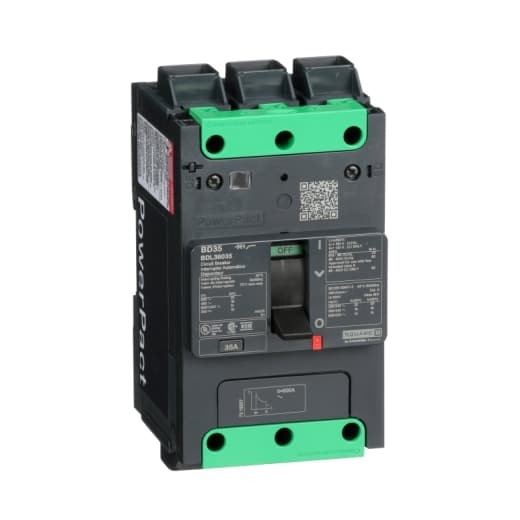

Square D by Schneider Electric BDL36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD design. It is a 3-pole (3P) device with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is equipped with Everlink (Creep compensating) lugs on both line and load sides, ensuring a secure connection. It offers a degree of protection of IP40 and can be mounted either on a DIN rail or as an individual unit on a plate. The BDL36035 has a mechanical durability of 20,000 operations at no load and an electrical durability of 10,000 operations with load at 440Vac. Its protection settings include over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The device also features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 35 AT. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, up to 25kA at 240Vac and down to 10kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • Mounting Mode
    Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • Depth
    3.15 in (80 mm)
  • Width
    3.19 in (81 mm)
  • 9 Mm Pitches
    9
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Quantity Per Set
    Set of 1
  • Height
    5.39 in (137 mm)
  • Color
    Grey (RAL 7016)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Connection Pitch
    1.06 in (27 mm)
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Continuous Current Rating
    80 %
  • Utilisation Category
    Category A
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Breaking Capacity Code
    D
  • Control Type
    Toggle
  • Number Of Poles
    3P
  • Line Rated Current
    35 A
  • Device Application
    Distribution
  • Range
    PowerPact
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BD 035
  • Product Name
    PowerPact B

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36035 on Powermatic Associates is $979.00. Order now.

BDL36035 Related Documents

Catalog-1631033747776.pdfInstruction Sheet-1631033747788.pdfProduct Datasheet-1631033747794.pdf
