BDL36045LU Schneider Electric Industrial Automation Components

BDL36045LU on Powermatic Associates
Schneider Electric

Part#:BDL36045LU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

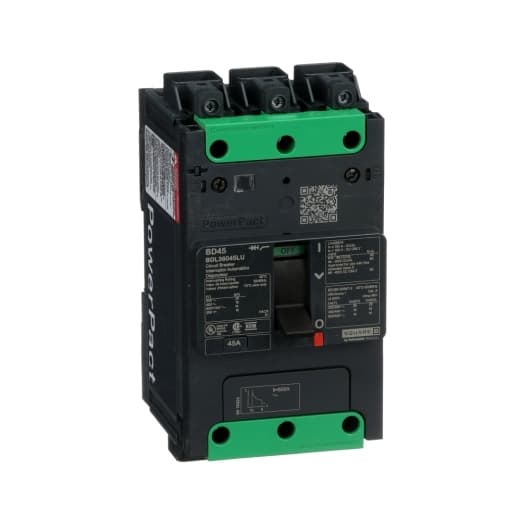

Square D by Schneider Electric BDL36045LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range. It features a PowerPact B-Frame 100 TMD design with 3 poles (3P) and a rated current of 45A. This MCCB is designed for 600Vac 600Y/347Vac with a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The connection type includes Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only. It has a mechanical durability of 20,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. The protection settings are over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. Its dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. The MCCB operates with a rated insulation voltage (Ui) of 800 V, a rated operating voltage (Ue) of 525 V, and offers thermal and magnetic protection functions. The trip current rating is 45 AT, with an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, up to 25kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Product Or Component Type
    Circuit breaker
  • Connection Pitch
    1.06 in (27 mm)
  • 9 Mm Pitches
    9
  • Range
    PowerPact
  • Utilisation Category
    Category A
  • Breaking Capacity Code
    D
  • Color
    Grey (RAL 7016)
  • Device Short Name
    BD 045
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Depth
    3.15 in (80 mm)
  • Line Rated Current
    45 A
  • Trip Unit Technology
    Thermal-magnetic
  • Device Application
    Distribution
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Height
    5.39 in (137 mm)
  • Control Type
    Toggle
  • Trip Unit Name
    TM-D
  • Suitability For Isolation
    Yes IEC 60947-2
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Protected Poles Description
    3t
  • Number Of Poles
    3P
  • Continuous Current Rating
    80 %
  • Quantity Per Set
    Set of 1
  • Product Name
    PowerPact B
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • Width
    3.19 in (81 mm)
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36045LU on Powermatic Associates is $1,635.00. Order now.
