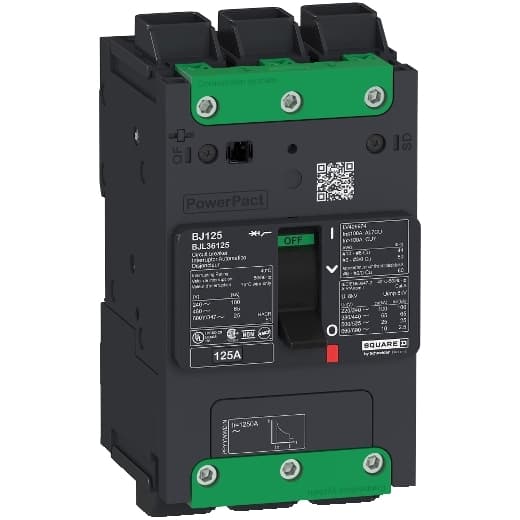

BDM36025 Schneider Electric Industrial Automation Components

Product Details

• [Ui] Rated Insulation Voltage
  800 V IEC 60947-2
• Quantity Per Set
  Set of 1
• Breaking Capacity Code
  D
• Product Or Component Type
  Circuit breaker
• 9 Mm Pitches
  9
• Range
  PowerPact
• Power Wire Stripping Length
  0.79 in (20 mm)
• Height
  5.39 in (137 mm)
• Line Rated Current
  25 A
• Utilisation Category
  Category A
• Device Short Name
  BD 025
• [Uimp] Rated Impulse Withstand Voltage
  8 kV IEC 60947-2
• Electrical Durability
  10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
• Color
  Grey (RAL 7016)
• Product Name
  PowerPact B
• Connection Pitch
  1.06 in (27 mm)
• Width
  3.19 in (81 mm)
• [Ue] Rated Operational Voltage
  525 V AC 50/60 Hz UL 489
• Number Of Poles
  3P
• Continuous Current Rating
  80 %
Net Weight
2.37 lb(US) (1.074 kg)
Control Type
Toggle
Suitability For Isolation
Yes conforming to IEC 60947-2
Depth
3.15 in (80 mm)
Trip Unit Technology
Thermal-magnetic
Mechanical Durability
20000 cycles IEC 947-1 Annex K ed 5.2
Device Application
Distribution
Local Signalling
for presence of auxiliary contacts flag (green)
Electrical Connection
Everlink lug line Terminal nut load
Mounting Mode
Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
Tightening Torque
44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
AWG Gauge
AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Number Of Slots
1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
[Ics] Rated Service Breaking Capacity
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
Breaking Capacity
25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489
