Part#:BGA34125Y

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

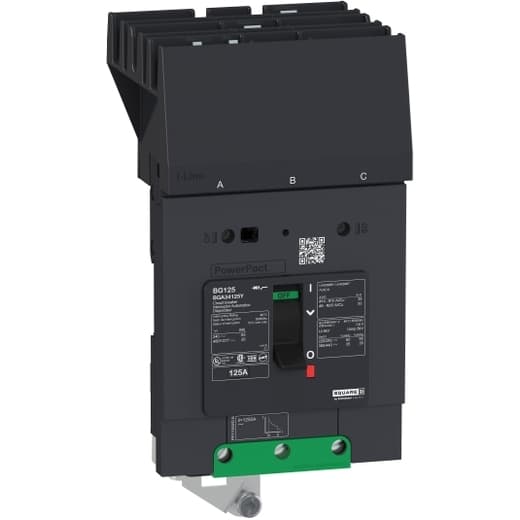

Square D by Schneider Electric BGA34125Y is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGA sub-range, featuring a PowerPact B-Frame 125 TMD 3P 125A design for 480Y/277Vac with a 35kA I-line ABC 80% rated. It has a rated impulse voltage (Uimp) of 8 kV and utilizes an I-line connection for ABC phases. The degree of protection is IP40, with a rated current of 125A and a rated voltage (AC) of 480Vac 480Y/277Vac. Its mechanical durability is noted at 20,000 operations with no load, and it is designed to mount on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism for robust attachment. This 3-pole (3P) breaker measures 137 mm in height, 89 mm in depth, and 81 mm in width. It falls under utilisation category A and offers protection settings for over-current fixed at 125A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V, and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 125 AT. Its electrical durability with load is 10,000 operations at 440Vac; In, and it has a frame current rating of 125 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 14kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    80 %
  • Quantity Per Set
    Set of 1
  • Device Short Name
    BG 125
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Connection Pitch
    1.06 in (27 mm)
  • Depth
    3.50 in (89 mm)
  • Product Name
    PowerPact B
  • Utilisation Category
    Category A
  • Mounting Height
    4.49 in (114 mm)
  • Height
    5.39 in (137 mm)
  • Range
    PowerPact
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Color
    Grey (RAL 7016)
  • Control Type
    Toggle
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Width
    3.19 in (81 mm)
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Device Application
    Distribution
  • Number Of Poles
    3P
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Line Rated Current
    125 A
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Breaking Capacity Code
    G
  • Trip Unit Technology
    Thermal-magnetic
  • Net Weight
    2.90 lb(US) (1.315 kg)
  • Phase Connection
    ABC
  • 9 Mm Pitches
    9
  • Mounting Mode
    I-Line
  • AWG Gauge
    AWG 14...AWG 2/0 aluminium/copper
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Connection
    I-Line connection line Lugs load
  • Tightening Torque
    31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 35 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BGA34125Y on Powermatic Associates is $1,835.00. Order now.
