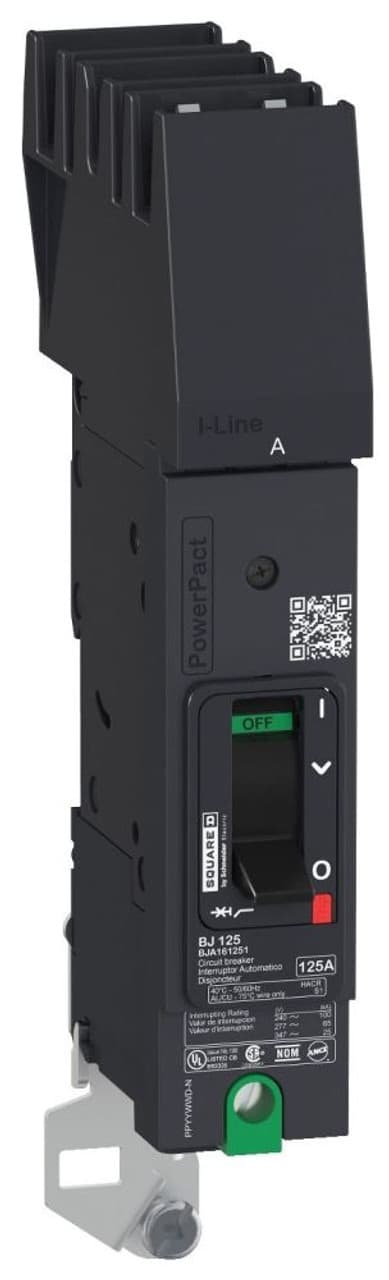

BJA160703 Schneider Electric Electronic Components

Product Details

• [Uimp] Rated Impulse Withstand Voltage
  8 kV IEC 60947-2
• AWG Gauge
  AWG 14...AWG 2/0 aluminium/copper
• Depth
  3.50 in (89 mm)
• Device Short Name
  BJ 070
• Breaking Capacity Code
  J
• Utilisation Category
  Category A
• Mounting Height
  1.50 in (38.1 mm)
• Color
  Gray RAL 7016)
• Control Type
  Toggle
• Suitability For Isolation
  Yes conforming to IEC 60947-2
• 9 Mm Pitches
  3
• Phase Connection
  B
• Range
  PowerPact
• Mechanical Durability
  20000 cycles IEC 947-1 Annex K ed 5.2
• [Ui] Rated Insulation Voltage
  800 V IEC 60947-2
• Local Signalling
  for presence of auxiliary contacts flag (green)
• Device Application
  Distribution
• Product Name
  PowerPact B
• [Ics] Rated Service Breaking Capacity
  65 kA 220...240 V AC 50/60 Hz IEC 60947-2
• Electrical Durability
  10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Height
5.39 in (137 mm)
Line Rated Current
70 A
Continuous Current Rating
80 %
Quantity Per Set
Set of 1
Product Or Component Type
Circuit breaker
Connection Pitch
1.06 in (27 mm)
Width
1.06 in (27 mm)
Trip Unit Technology
Thermal-magnetic
Mounting Mode
I-Line
Net Weight
1.41 lb(US) (0.6375 kg)
Number Of Poles
1P
Tightening Torque
31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Electrical Connection
I-Line connection line Lugs load
[Ue] Rated Operational Voltage
240 V AC 50/60 Hz UL 489 AC DC
Breaking Capacity
100 kA 208Y/120 V AC 50/60 Hz UL 489 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480Y/277 V AC 50/60 Hz UL 489 25 kA 600Y/347 V AC 50/60 Hz UL 489 50 kA 125 V DC UL 489
