Part#:BMI0702P36F

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

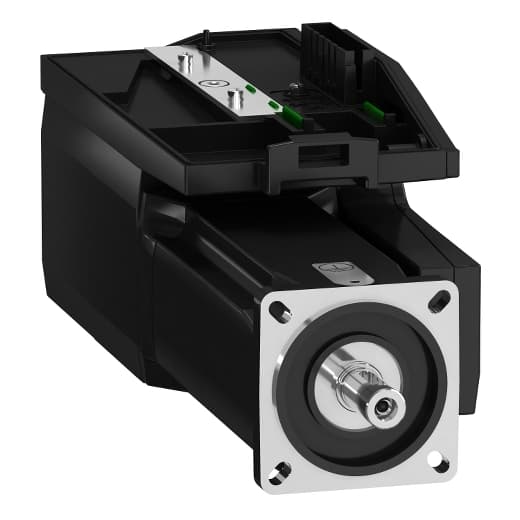

Schneider Electric BMI0702P36F is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute single-turn 16ppr SinCos encoder, a keyed shaft, a holding brake, and double (2) motor stacks. The motor operates on a supply voltage range of 208Vac to 480Vac, including specific ratings at 220Vac, 240Vac, and 400Vac. It offers a degree of protection rated at IP65 and has a rated current of 1.95A at 1800rpm with 208Vac, 1.8A at 3600rpm with 400Vac, and 1.80A at 4400rpm with 480Vac. The mounting mode is a 70x70mm flange, and it uses the HIPERFACE communication protocol. The net width of the motor is 70 mm. Its rotational speeds are 1800rpm at 208Vac, 3600rpm at 400Vac, and 4400rpm at 480Vac, with rated active power of 0.42kW at 1800rpm with 208Vac, 0.76kW at 3600rpm with 400Vac, and 0.93kW at 4400rpm with 480Vac. The maximum torque is 6.42Nm, with a stall torque of 2.24Nm, and operating torques of 2.21Nm at 1800rpm with 208Vac, 2.02Nm at 3600rpm with 400Vac, and 2.01Nm at 4400rpm with 480Vac. The moment of inertia is 1.24kg.cm.

Product Details

  • Supply Frequency
    50/60 Hz - 5...5 %
  • Continuous Stall Current
    2 A
  • EMC Filter
    Integrated
  • Second Shaft
    Without second shaft end
  • Mounting Holes Diameter
    0.22 in (5.5 mm)
  • Phase
    Three phase
  • Output Current 3S Peak
    6 A 400 V 3 s
  • Stator Inductance
    25.75 mH 68 °F (20 °C)
  • Length
    12.05 in (306 mm)
  • Speed Feedback Resolution
    32768 points/turn
  • Electrical Connection
    Printed circuit board connector
  • [Us] Rated Supply Voltage
    208...480 V - 15...10 %
  • Range Compatibility
    Lexium 32i
  • Supply Voltage Limits
    208…480 V
  • Shaft Length
    0.91 in (23 mm)
  • Network Frequency Limits
    47.5…63 Hz
  • Holding Brake
    With
  • Device Short Name
    BMI
  • Continuous Stall Torque
    21.95 lbf.in (2.48 N.m) 208...480 V three phase
  • Shaft End
    Keyed
  • Number Of Motor Poles
    10
  • Shaft Diameter
    0.43 in (11 mm)
  • Rotor Inertia
    1.24 kg.cm²
  • Number Of Mounting Holes
    4
  • Maximum Mechanical Speed
    8000 rpm
  • Continuous Output Current
    2 A 8 kHz
  • Key Width
    0.16 in (4 mm)
  • Product Or Component Type
    Servo motor with power stage
  • Feedback Type
    Absolute single turn SinCos Hiperface
  • Maximum Axial Force Fa
    0.2 x Fr
  • Holding Torque
    26.55 lbf.in (3 N.m) holding brake
  • Brake Pull-In Power
    5 W
  • Motor Flange Size
    2.76 in (70 mm)
  • Centring Collar Diameter
    2.36 in (60 mm)
  • Torque Constant
    1.15 N.m/A 68 °F (20 °C)
  • Circle Diameter Of The Mounting Holes
    2.95…3.23 in (75…82 mm)
  • Distance Shaft Shoulder-Flange
    0.10 in (2.5 mm)
  • Type Of Cooling
    Natural convection
  • Back Emf Constant
    77.18 V/krpm 68 °F (20 °C)
  • Stator Electrical Time Constant
    2.9 ms 68 °F (20 °C)
  • Stator Resistance
    8.89 Ohm 68 °F (20 °C)
  • Centring Collar Depth
    0.10 in (2.5 mm)
  • Mounting Support
    International standard flange
  • Number Of Motor Stacks
    2
  • Product Compatibility
    Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
  • Nominal Speed
    1800 rpm 208 V three phase 3600 rpm 400 V three phase 4400 rpm 480 V three phase
  • Peak Stall Torque
    60.18 lbf.in (6.8 N.m) 208 V three phase 60.18 lbf.in (6.8 N.m) 400 V three phase 60.18 lbf.in (6.8 N.m) 480 V three phase
  • Maximum Current Irms
    9.6 A 208 V, three phase 9.6 A 400 V, three phase 9.6 A 480 V, three phase
  • Nominal Output Power
    400 W 208 V three phase 800 W 400 V three phase 900 W 480 V three phase
  • Nominal Torque
    21.24 lbf.in (2.4 N.m) 208 V three phase 19.47 lbf.in (2.2 N.m) 400 V three phase 17.70 lbf.in (2 N.m) 480 V three phase
  • Maximum Radial Force Fr
    710 N 1000 rpm 560 N 2000 rpm 490 N 3000 rpm 450 N 4000 rpm 410 N 5000 rpm 390 N 6000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BMI0702P36F on Powermatic Associates is $2,282.53. Order now.
