Part#:BMI1002P02F

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

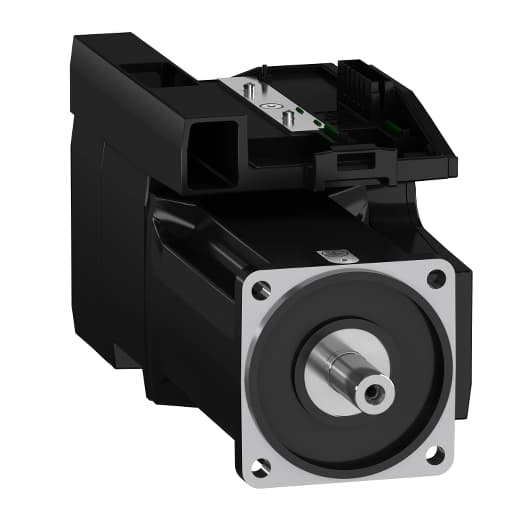

Schneider Electric BMI1002P02F is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, a holding brake, and double (2) motor stacks. The servo motor operates on a supply voltage of 208Vac-480Vac, including 220Vac, 240Vac, and 400Vac options. It offers a degree of protection rated at IP54 and IP65. The rated current varies with speed and voltage: 3.9A at 1900rpm and 208Vac, 3.5A at 3800rpm and 400Vac, and 3.25A at 4700rpm and 480Vac. This motor is designed for mounting with a 100x100mm flange and communicates via the HIPERFACE protocol. It has a net width of 100 mm. The rotational speed capabilities are 1900rpm at 208Vac, 3800rpm at 400Vac, and 4700rpm at 480Vac, with rated active power of 0.98kW/980W, 1.73kW/1730W, and 1.69kW/1690W, respectively. The maximum torque is 13.92Nm, with a stall torque of 4.99Nm, and operating torques of 4.91Nm at 1900rpm and 208Vac, 4.34Nm at 3800rpm and 400Vac, and 4Nm at 4700rpm and 480Vac. The moment of inertia is 6.77kg.cm.

Product Details

  • Output Current 3S Peak
    12 A 400 V 3 s
  • EMC Filter
    Integrated
  • Shaft Length
    1.57 in (40 mm)
  • Torque Constant
    1.28 N.m/A 68 °F (20 °C)
  • Number Of Mounting Holes
    4
  • Number Of Motor Poles
    10
  • Maximum Mechanical Speed
    6000 rpm
  • Continuous Stall Current
    4 A
  • Shaft End
    Untapped
  • Second Shaft
    Without second shaft end
  • Device Short Name
    BMI
  • Holding Torque
    48.68 lbf.in (5.5 N.m) holding brake
  • Stator Inductance
    9.79 mH 68 °F (20 °C)
  • Distance Shaft Shoulder-Flange
    0.14 in (3.5 mm)
  • [Us] Rated Supply Voltage
    208...480 V - 15...10 %
  • Back Emf Constant
    84.52 V/krpm 68 °F (20 °C)
  • Circle Diameter Of The Mounting Holes
    4.53 in (115 mm)
  • Network Frequency Limits
    47.5…63 Hz
  • Electrical Connection
    Printed circuit board connector
  • Product Or Component Type
    Servo motor with power stage
  • Shaft Diameter
    0.75 in (19 mm)
  • Feedback Type
    Absolute multiturn SinCos Hiperface
  • Number Of Motor Stacks
    2
  • Mounting Holes Diameter
    0.35 in (9 mm)
  • Supply Voltage Limits
    208…480 V
  • Continuous Output Current
    4 A 8 kHz
  • Rotor Inertia
    6.77 kg.cm²
  • Holding Brake
    With
  • Brake Pull-In Power
    8 W
  • Continuous Stall Torque
    53.10 lbf.in (6 N.m) 208...480 V three phase
  • Mounting Support
    International standard flange
  • Motor Flange Size
    3.94 in (100 mm)
  • Phase
    Three phase
  • Supply Frequency
    50/60 Hz - 5...5 %
  • Range Compatibility
    Lexium 32i
  • Type Of Cooling
    Natural convection
  • Centring Collar Depth
    0.14 in (3.5 mm)
  • Maximum Axial Force Fa
    0.2 x Fr
  • Stator Electrical Time Constant
    4.17 ms 68 °F (20 °C)
  • Centring Collar Diameter
    3.74 in (95 mm)
  • Speed Feedback Resolution
    131072 points/turn x 4096 turns
  • Length
    11.10 in (282 mm)
  • Stator Resistance
    2.347 Ohm 68 °F (20 °C)
  • Product Compatibility
    Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
  • Nominal Speed
    1900 rpm 208 V three phase 3800 rpm 400 V three phase 4700 rpm 480 V three phase
  • Maximum Current Irms
    17.5 A 208 V, three phase 17.5 A 400 V, three phase 17.5 A 480 V, three phase
  • Nominal Torque
    45.14 lbf.in (5.1 N.m) 400 V three phase 47.79 lbf.in (5.4 N.m) 208 V three phase 36.29 lbf.in (4.1 N.m) 480 V three phase
  • Nominal Output Power
    1000 W 208 V three phase 1900 W 400 V three phase 1900 W 480 V three phase
  • Peak Stall Torque
    123.91 lbf.in (14 N.m) 208 V three phase 123.91 lbf.in (14 N.m) 400 V three phase 123.91 lbf.in (14 N.m) 480 V three phase
  • Maximum Radial Force Fr
    990 N 1000 rpm 790 N 2000 rpm 690 N 3000 rpm 620 N 4000 rpm 580 N 5000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
